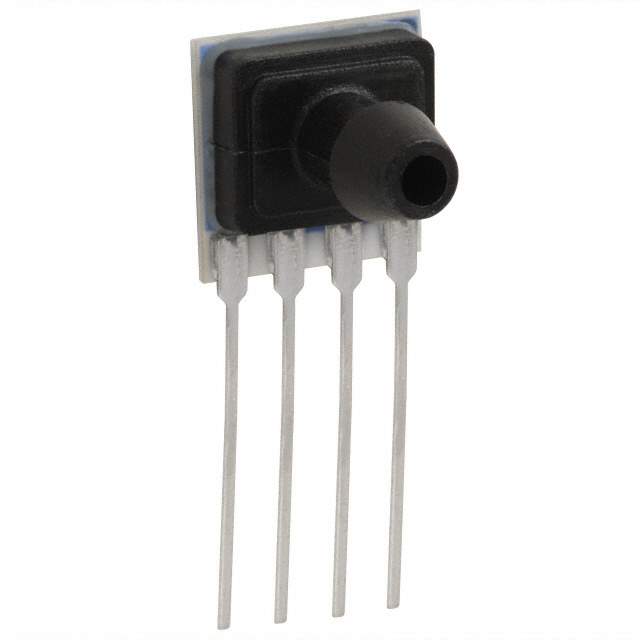

CPC15AFH Real Image
Same model may have multiple batches, images only for reference.

CPC15AFH

Part No CPC15AFH
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR ABSOLUTE 2-15PSIA / Pressure Sensor 15PSI (103.42kPa) Absolute Male - 0.15" (3.8mm) Tube 0 mV ~ 90 mV (12V) 4-SIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series CPC
Package Tube
Product Status Obsolete
Applications Board Mount
Pressure Type Absolute
Operating Pressure 15PSI (103.42kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 90 mV (12V)
Accuracy ±2%
Voltage - Supply 3V ~ 16V
Port Size Male - 0.15" (3.8mm) Tube
Port Style Barbed
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 45PSI (310.26kPa)
Temperature Range - Operating -25°C ~ 85°C
Package / Case 4-SIP Module
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Names 480-2649-5
Standard Package 5
Win Source Part Number 1029210-CPC15AFH
Ultra Librarian 3D Model Ultra Librarian CPC15AFH CAD Model

Description

The CPC15AFH pressure sensor is a temperature-compensated component that is ideal for board mount applications.

  • Port Size: Male 0.15-inch tube
  • Port Style: Barbed
  • Pressure: 15PSI
  • Maximum Pressure: 45PSI
  • Output Type: Wheatstone Bridge
  • Output: 0mV to 90mV with an accuracy of ±2%
  • Voltage Supply: 3V to 16V
  • Package/Case: 4-SIP module
  • Operating Temperature: -25°C to 85°C
  • Status: Obsolete
  • Alternative Parts: XPC15DTH, XPC15GFH, XPC15DTC, MPX2100DP, MPX2100D, and MPX2102ASXCPC15AFH
