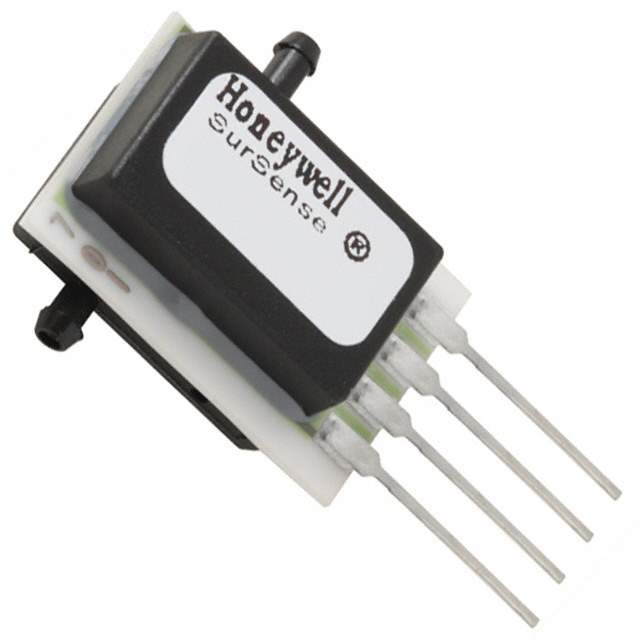

DUXL20D Real Image
Same model may have multiple batches, images only for reference.

DUXL20D

Part No DUXL20D
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRESS DIFF 20" H2O 4SIP / Pressure Sensor 0.72PSI (4.98kPa) Differential Male - 0.08" (2.03mm) Tube, Dual 0 mV ~ 30 mV (4.5V) 4-SIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series DUXL
Package Tube
Product Status Obsolete
Applications Board Mount
Pressure Type Differential
Operating Pressure 0.72PSI (4.98kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 30 mV (4.5V)
Accuracy ±0.5%
Voltage - Supply 3V ~ 8V
Port Size Male - 0.08" (2.03mm) Tube, Dual
Port Style Barbed
Termination Style PC Pin
Maximum Pressure 7.23PSI (49.83kPa)
Temperature Range - Operating -25°C ~ 85°C
Package / Case 4-SIP Module
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Names 480-2669-5
Standard Package 5
Win Source Part Number 1031589-DUXL20D
Ultra Librarian 3D Model Ultra Librarian DUXL20D CAD Model

Description

The DUXL20D is a differential pressure sensor from Honeywell Sensing and Productivity Solutions that operates @ a pressure of 0.72PSI (4.98kPa).

  • Pressure: 0.72PSI (4.98kPa)
  • Port Style: Male - 0.08" (2.03mm) tube, dual port with barbed ports
  • Output: Wheatstone Bridge
  • Output Range: 0 mV ~ 30 mV (4.5V)
  • Accuracy: ±0.5%
  • Supply Voltage: 3V ~ 8V
  • Temperature Range: -25°C to 85°C
  • Package: 4-SIP module
  • Application: Board mount devices
