Same model may have multiple batches, images only for reference.

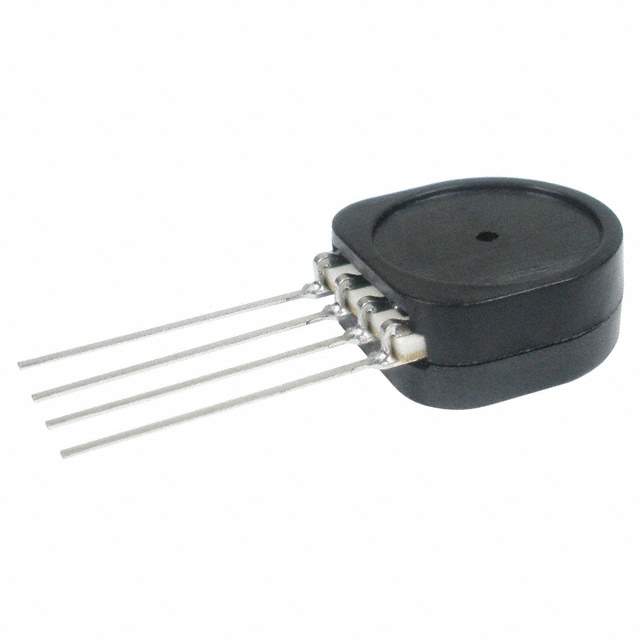

HSCSSNT015PDAA5 Real Image
Same model may have multiple batches, images only for reference.

HSCSSNT015PDAA5

Part No HSCSSNT015PDAA5
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description BRD MNT PRESSURE SENSORS / Pressure Sensor -15psi to 15psi Differential Medical 4-Pin SIP Module
Datasheet
HSCSSNT015PDAA5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Series TruStability HSC
Pressure Type Differential
Operating Pressure ±15 PSI (±103.42 kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±0.25%
Operating Supply Voltage 4.75 V ~ 5.25 V
Port Style No Port
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure ±60 PSI (±413.69 kPa)
Operating Temperature Range -20°C ~ 85°C
Package 4-SIP Module
Manufacturer Package 4-SIP
Win Source Part Number 776199-HSCSSNT015PDAA5
Popularity Medium
Supply and Demand Status Limited
Family Name HSCSSNT015PDAA5
Introduction Date August 04, 2014
Country of Origin China, Mexico, United States of America
Estimated EOL Date 2033
Ultra Librarian 3D Model Ultra Librarian HSCSSNT015PDAA5 CAD Model

Description

The Honeywell Sensing and Productivity Solutions TruStability HSCSSNT015PDAA5 is a differential pressure sensor designed for use in a variety of electronic applications.

  • Package: 4-SIP module
  • Termination Style: PC pin
  • Operating Temperature: -20°C to 85°C
  • Operating Pressure Range: ±15 PSI (±103.42 kPa)
  • Output Type: Analog Voltage
  • Operating Supply Voltage: 4.75V to 5.25V
  • Output Voltage Range: 0.5V to 4.5V
  • Accuracy: ±0.25%
  • Family Name: HSCSSNT015PDAA5
  • REACH: Unaffected
  • ECCN: EAR99
  • Supply and Demand Status: Limited
