Same model may have multiple batches, images only for reference.

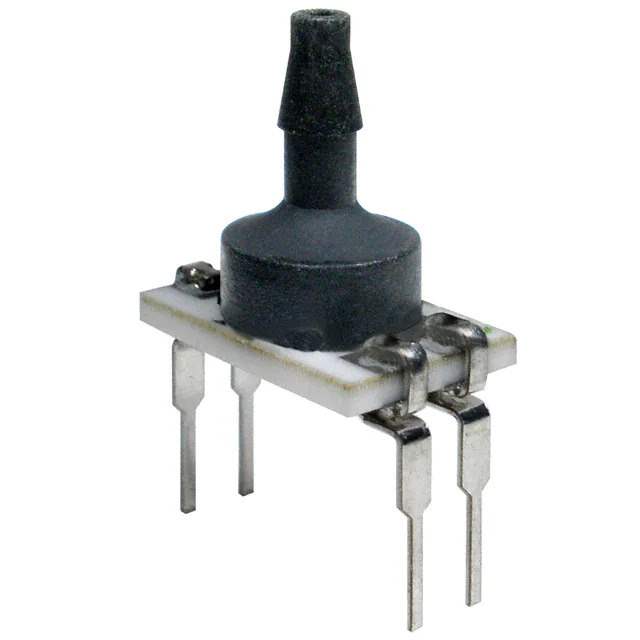

NBPDANN100PAUNV Real Image
Same model may have multiple batches, images only for reference.

NBPDANN100PAUNV

Part No NBPDANN100PAUNV
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 100PSIA 0.08" .086V
Datasheet
NBPDANN100PAUNV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Honeywell
Series NBP
Package Bulk
Product Status Discontinued
Applications Board Mount
Pressure Type Absolute
Operating Pressure 100PSI (689.48kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 86 mV (5V)
Accuracy ±0.25%
Voltage - Supply 1.8V ~ 12V
Port Size Male - 0.08" (1.91mm) Tube
Port Style Barbed
Termination Style PC Pin
Maximum Pressure 240PSI (1654.74kPa)
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Package / Case 4-DIP (0.453", 11.50mm), Top Port
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 646840-NBPDANN100PAUNV
Ultra Librarian 3D Model Ultra Librarian NBPDANN100PAUNV CAD Model

Description

The NBP series pressure sensor, manufactured by Honeywell, is a high-quality electronic component designed for accurate pressure measurement in various applications.

  • Termination Style: PC Pin
  • Package Type: Bulk
  • Suitable for: Board Mount Applications
  • Output Type: Wheatstone Bridge
  • Output Range: 0 mV to 86 mV @ 5V Supply Voltage
  • Accuracy: ±0.25%
  • Operating Pressure: 100PSI
  • Maximum Pressure Rating: 240PSI
  • Voltage Supply: 1.8V to 12V
  • Mounting Type: Through Hole
  • Temperature Range: -40°C to 125°C
  • Status: Discontinued
