Same model may have multiple batches, images only for reference.

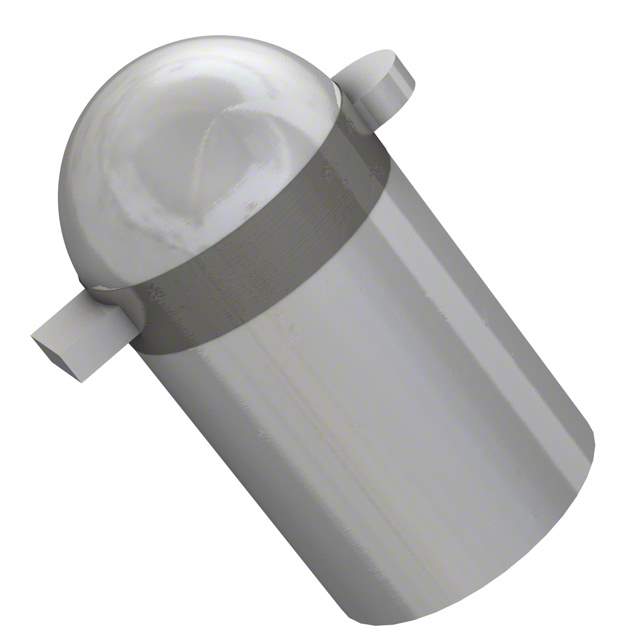

SD2420-002 Real Image
Same model may have multiple batches, images only for reference.

SD2420-002

Part No SD2420-002
Manufacturer Honeywell
Catalog Optical Sensors - Photodiodes
Description PHOTODIODE PILL PACK / Photodiode Module 2-Pin Metal Can
Datasheet
SD2420-002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Packaging Bulk
Response Time 50ns
Voltage - DC Reverse (Vr) (Maximum) 50V
Current - Dark (Typ) 5nA
Viewing Angle 48°
Operating Temperature Range -55°C ~ 125°C
Mounting Style Through Hole
Win Source Part Number 794027-SD2420-002
Popularity Medium
Supply and Demand Status Limited
Family Name SD2420
Introduction Date February 20, 1997
ECCN EAR99
Country of Origin Mexico
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian SD2420-002 CAD Model

Description

The SD2420-002 from Honeywell Sensing and Productivity Solutions is a through-hole mounting style sensor.

  • Operating Temperature Range: -55°C to 125°C
  • Response Time: 50ns
  • Viewing Angle: 48°
  • Series: SD2420
  • Current-Dark: 5nA
  • Maximum DC Reverse Voltage: 50V
