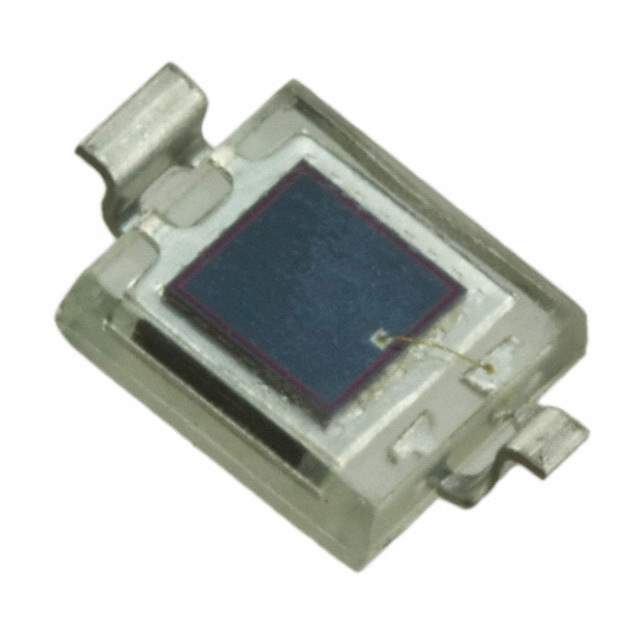

VBP104SR Real Image
Same model may have multiple batches, images only for reference.

VBP104SR

Part No VBP104SR
Manufacturer Vishay
Catalog Optical Sensors - Photodiodes
Description PHOTODIODE 750 TO 1050 NM
Datasheet
VBP104SR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors
Estimated Pruduction Lead Time 27 Weeks
Features Photodiode 940nm 100ns 130° 2-SMD, Z-Bend
Manufacturer Vishay
Package Reel - TR
Operating Temperature Range -40°C ~ 100°C
Mounting Surface Mount
Package 2-SMD, Z-Bend
Family Name VBP104
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8541.40.6050
Other Part Number 751-1497-2-ND, 751-1497-1-ND, 751-1497-1, 751-1497-2, 751-VBP104SRDKR, 751-1497-6-ND, 751-VBP104SRCT, 751-1497-6, 751-VBP104SRTR
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 902495-VBP104SR
Ultra Librarian 3D Model Ultra Librarian VBP104SR CAD Model

Description

The Vishay VBP104SR photodiode is a surface mount device with a 940 nm wavelength and a response time of 100 ns.

  • Wavelength: 940 nm
  • Response Time: 100 ns
  • Viewing Angle: 130 degrees
  • Package: 2-SMD, Z-bend
  • Family: VBP104 family
  • Application: Sensors
  • Operating Temperature: -40°C to 100°C
  • Supplied in: Reels of 1000 pieces
  • Popularity Rate: 62 pct.
  • Supply and Demand Status: Balance
  • Estimated Production Lead Time: 27 weeks
  • HTSUS: 8541.40.6050
