Same model may have multiple batches, images only for reference.

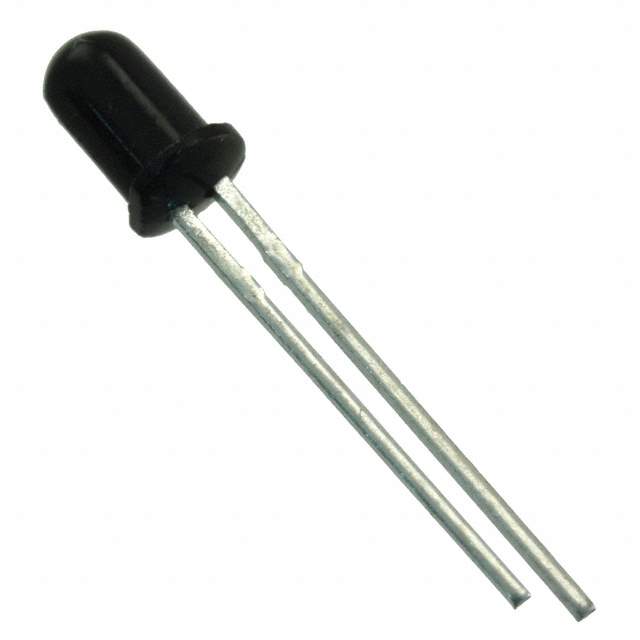

SDP8105-001 Real Image
Same model may have multiple batches, images only for reference.

SDP8105-001

Part No SDP8105-001
Manufacturer Honeywell
Catalog Optical Sensors - Phototransistors
Description SENSOR PHOTO 935NM TOP VIEW RAD / Phototransistors 935nm Top View Radial
Datasheet
SDP8105-001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Phototransistors
Mfr Honeywell Sensing and Productivity Solutions
Package Bulk
Product Status Obsolete
Voltage - Collector Emitter Breakdown (Max) 15 V
Current - Dark (Id) (Max) 250 nA
Wavelength 935nm
Viewing Angle 20°
Power - Max 70 mW
Mounting Type Through Hole
Orientation Top View
Temperature Range - Operating -40°C ~ 85°C (TA)
Package / Case Radial
Other Names SDP8105001,480-3577,SDP8105-001
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.7080
Win Source Part Number 1234929-SDP8105-001
Ultra Librarian 3D Model Ultra Librarian SDP8105-001 CAD Model

Description

The Honeywell SDP8105-001 is a phototransistor sensor used in optical sensing applications.

  • Maximum Power: 70 mW
  • Voltage Breakdown: 15 V
  • Viewing Angle: 20 degrees
  • Wavelength: 935 nm
  • Current Dark (Id): 250 nA
  • Operating Temperature: -40°C to 85°C
  • Package Type: Radial
  • Mounting: Through a hole
