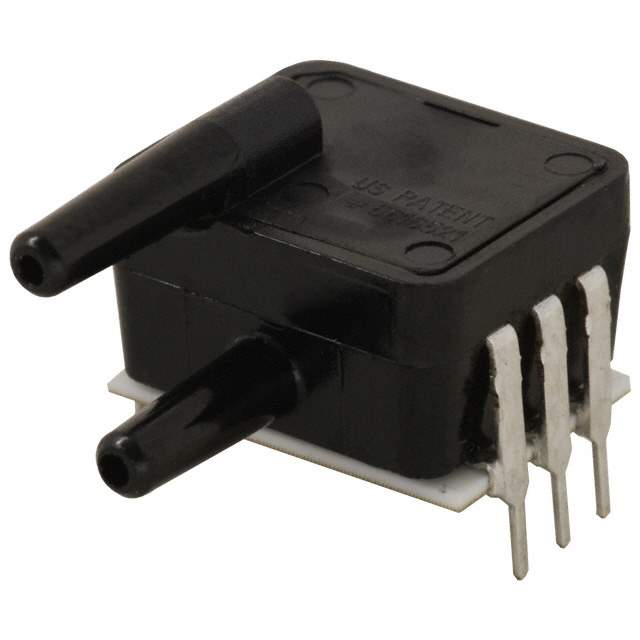

SDX01D4 Real Image
Same model may have multiple batches, images only for reference.

SDX01D4

Part No SDX01D4
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR TEMP COMP 0-1PSID DIP / Pressure Sensor 1PSI (6.89kPa) Differential Male - 0.09" (2.28mm) Tube, Dual 0 mV ~ 18 mV (12V) 6-DIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series SDX
Package Bulk
Applications Board Mount
Pressure Type Differential
Operating Pressure 1PSI (6.89kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 18 mV (12V)
Accuracy ±1%
Voltage - Supply 20V
Port Size Male - 0.09" (2.28mm) Tube, Dual
Port Style Barbless
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 20PSI (137.9kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 6-DIP Module
Other Names 287-1028,Q1899502,287-1028R
Standard Package 25
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234788-SDX01D4
Ultra Librarian 3D Model Ultra Librarian SDX01D4 CAD Model

Description

The Honeywell Sensing and Productivity Solutions SDX01D4 pressure sensor is a high-quality electronic component used for various applications.

  • Pressure Type: Differential
  • Maximum Operating Pressure: 20PSI
  • Port Size: Male 0.09-inch Tube, Dual
  • Temperature Compensated: Yes
  • Output Type: Wheatstone bridge
  • Output: 0mV to 18mV (12V)
  • Package: 6-DIP Module
  • Packaging: Bulk
