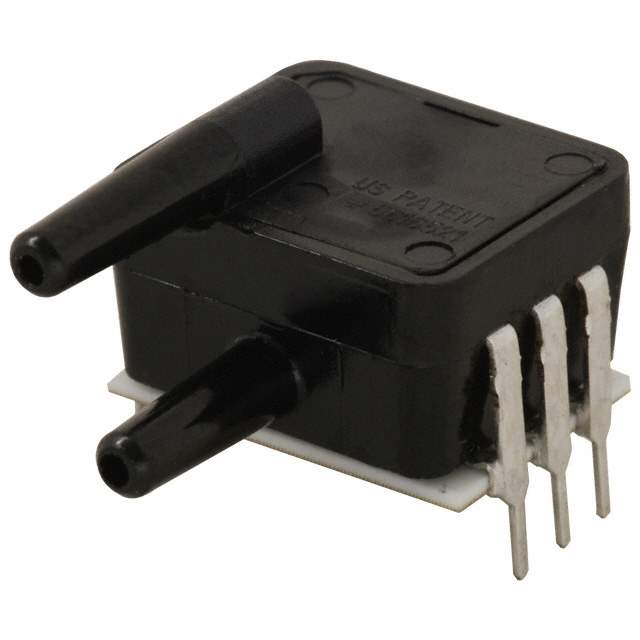

SDX15D4-A Real Image
Same model may have multiple batches, images only for reference.

SDX15D4-A

Part No SDX15D4-A
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRESS DIFF 15PSI  /  Pressure Sensor 15PSI (103.42kPa) Differential Male - 0.09" (2.28mm) Tube, Dual 0 mV ~ 90 mV (12V) 6-DIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series SDX
Package Tray
Applications Board Mount
Pressure Type Differential
Operating Pressure 15PSI (103.42kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 90 mV (12V)
Accuracy ±0.25%
Voltage - Supply 20V
Port Size Male - 0.09" (2.28mm) Tube, Dual
Port Style Barbless
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 30PSI (206.84kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 6-DIP Module
Base Product Number SDX15
Other Names SDX15D4A,480-2868
Standard Package 25
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234778-SDX15D4-A
Ultra Librarian 3D Model Ultra Librarian SDX15D4-A CAD Model

Description

The Honeywell SDX15D4-A is a temperature-compensated pressure sensor that is designed for board mounting applications.

  • Pressure Type: Differential
  • Maximum Operating Pressure: 15PSI
  • Port Size: 0.09 inches
  • Operating Temperature: -40 to 85 degrees Celsius
  • Voltage Supply: 20V
  • Mounting: 6-DIP Module
