Same model may have multiple batches, images only for reference.

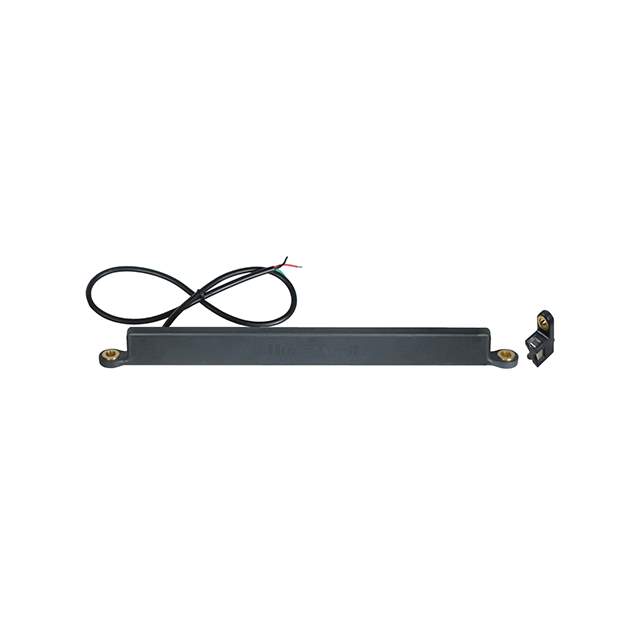

SPS-L225-HDLS Real Image
Same model may have multiple batches, images only for reference.

SPS-L225-HDLS

Part No SPS-L225-HDLS
Manufacturer Honeywell
Catalog Position Sensors - Angle, Linear Position Measuring
Description SENSOR LINEAR 225MM WIRE LEAD  /  Magnetoresistive Sensor Linear Position External Magnet, Included Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Position Sensors - Angle, Linear Position Measuring
Mfr Honeywell Sensing and Productivity Solutions
Series SPS
For Measuring Linear Position
Technology Magnetoresistive
Linear Range 0 ~ 225.00mm (0 ~ 8.86")
Output Analog Voltage
Actuator Type External Magnet, Included
Linearity ±0.4%
Voltage - Supply 6V ~ 24V
Mounting Type Chassis Mount
Termination Style Wire Leads
Temperature Range - Operating -40°C ~ 125°C
Package / Case Box with Wire Leads
Base Product Number SPS-L225
Other Names 2266-SPS-L225-HDLS,480-6879
Standard Package 5
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.4500
Win Source Part Number 1234895-SPS-L225-HDLS
Ultra Librarian 3D Model Ultra Librarian SPS-L225-HDLS CAD Model

Description

The SPS-L225 is a magnetoresistive sensor designed for measuring linear position.

  • Linear Range: 0 ~ 225.00mm (0 ~ 8.86")
  • Actuator Type: External magnet actuator type that is included
  • Output Signal: Analog voltage
  • Resistance Tolerance: Not specified
  • Linearity: ±0.4%
  • Voltage Supply: 6V to 24V
  • Temperature Range: -40°C ~ 125°C
  • Mount: Chassis mountable
  • Package: Box with wire leads
  • Supplier Device Package: Not specified
