Same model may have multiple batches, images only for reference.

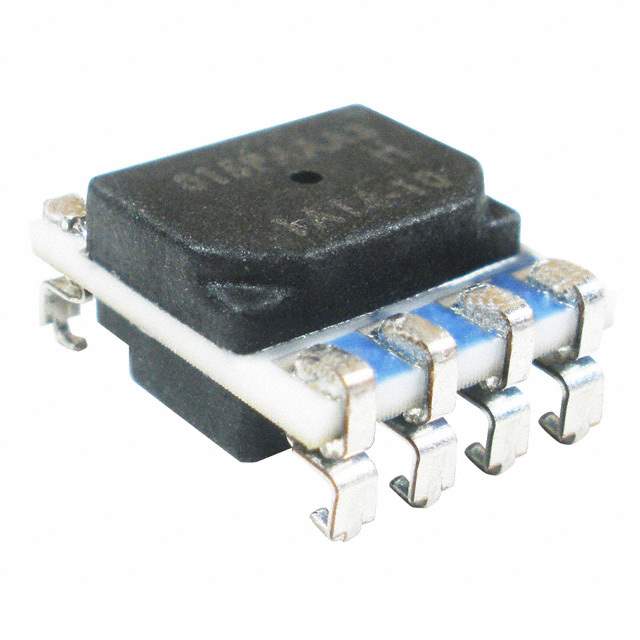

SSCMNNN015PA3A3 Real Image
Same model may have multiple batches, images only for reference.

SSCMNNN015PA3A3

Part No SSCMNNN015PA3A3
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 15PSI ABSO 3.3V SMT / Pressure Sensor 15PSI (103.42kPa) Absolute 12 b 8-SMD, J-Lead
Datasheet
SSCMNNN015PA3A3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Absolute
Operating Pressure 15PSI (103.42kPa)
Output Type I2C
Output 12 b
Accuracy ±0.25%
Voltage - Supply 3V ~ 3.6V
Port Style No Port
Features Amplified Output, Temperature Compensated
Termination Style SMD (SMT) Tab
Maximum Pressure 30PSI (206.84kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 8-SMD, J-Lead
Supplier Device Package 8-SMT
Base Product Number SSCMNNN
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234728-SSCMNNN015PA3A3
Ultra Librarian 3D Model Ultra Librarian SSCMNNN015PA3A3 CAD Model

Description

The SSCMNNN015PA3A3 is a TruStability pressure sensor from Honeywell Sensing and Productivity Solutions.

  • Output Type: I2C
  • Output: 12 b
  • Pressure Type: absolute
  • Operating Pressure: 15 PSI
  • Maximum Pressure: 30 PSI
  • Voltage Supply: 3V to 3.6V
  • Operating Temperatures: -40 to 85 degrees Celsius
