Same model may have multiple batches, images only for reference.

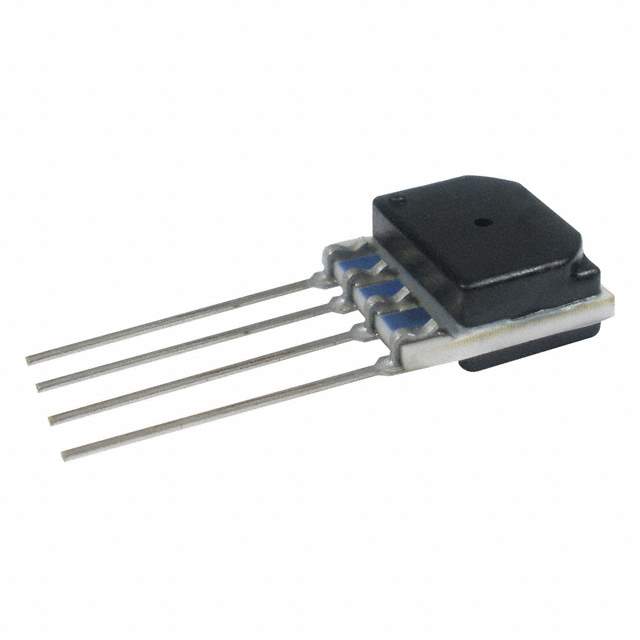

SSCSNNN1.6BAAA5 Real Image
Same model may have multiple batches, images only for reference.

SSCSNNN1.6BAAA5

Part No SSCSNNN1.6BAAA5
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description BRD MNT PRESSURE SENSORS / Pressure Sensor 23.21PSI (160kPa) Absolute 0.5 V ~ 4.5 V 4-SIP Module
Datasheet
SSCSNNN1.6BAAA5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Absolute
Operating Pressure 23.21PSI (160kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±0.25%
Voltage - Supply 4.75V ~ 5.25V
Port Style No Port
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure 58.02PSI (400kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP Module
Supplier Device Package 4-SIP
Base Product Number SSCSNNN
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234715-SSCSNNN1.6BAAA5
Ultra Librarian 3D Model Ultra Librarian SSCSNNN1.6BAAA5 CAD Model

Description

The SSCSNNN1.6BAAA5 is a pressure sensor from the TruStability® SSC series.

  • Termination Style: PC pin
  • Package: bulk
  • Standard Package: 20
  • Output Type: analog voltage
  • Output: 0.5V to 4.5V
  • Accuracy: ±0.25%
  • Pressure Type: absolute
  • Operating Pressure: 23.21PSI
  • Maximum Pressure: 58.02PSI
  • Voltage Supply: 4.75V to 5.25V
  • Package/Case: 4-SIP module
  • Operating Temperature Range: -40°C to 85°C
  • Honeywell Win Source Part Number: 1234715-SSCSNNN1.6BAAA5
