Same model may have multiple batches, images only for reference.

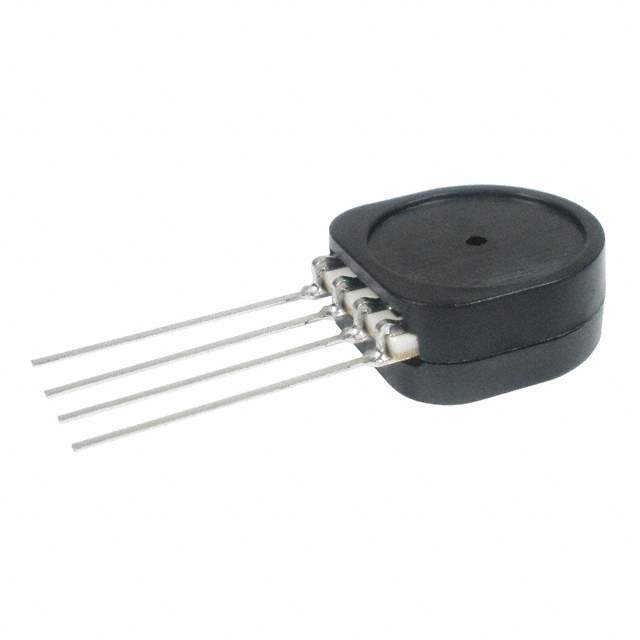

SSCSSNT100PAAA5 Real Image
Same model may have multiple batches, images only for reference.

SSCSSNT100PAAA5

Part No SSCSSNT100PAAA5
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description BRD MNT PRESSURE SENSORS / Pressure Sensor 100PSI (689.48kPa) Absolute 0.5 V ~ 4.5 V 4-SIP Module
Datasheet
SSCSSNT100PAAA5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Absolute
Operating Pressure 100PSI (689.48kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±0.25%
Voltage - Supply 4.75V ~ 5.25V
Port Style No Port
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure 250PSI (1723.69kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP Module
Supplier Device Package 4-SIP
Base Product Number SSCSSNT
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234765-SSCSSNT100PAAA5
Ultra Librarian 3D Model Ultra Librarian SSCSSNT100PAAA5 CAD Model

Description

The Honeywell Sensing and Productivity Solutions 1234765-SSCSSNT100PAAA5 is a pressure sensor that comes in a TruStability® SSC series.

  • Termination Style: PC Pin
  • Temperature Compensation: Yes
  • Application: Board Mount
  • Package Quantity: 20
  • Output Type: Analog Voltage
  • Output: 0.5 V ~ 4.5 V
  • Accuracy: ±0.25%
  • Pressure Type: Absolute
  • Operating Pressure: 100 PSI (689.48kPa)
  • Maximum Pressure: 250 PSI (1723.69kPa)
  • Voltage Supply: 4.75V ~ 5.25V
  • Package/Case: 4-SIP Module
  • Manufacturer: Honeywell Sensing and Productivity Solutions
  • Base Product Number: SSCSSNT
