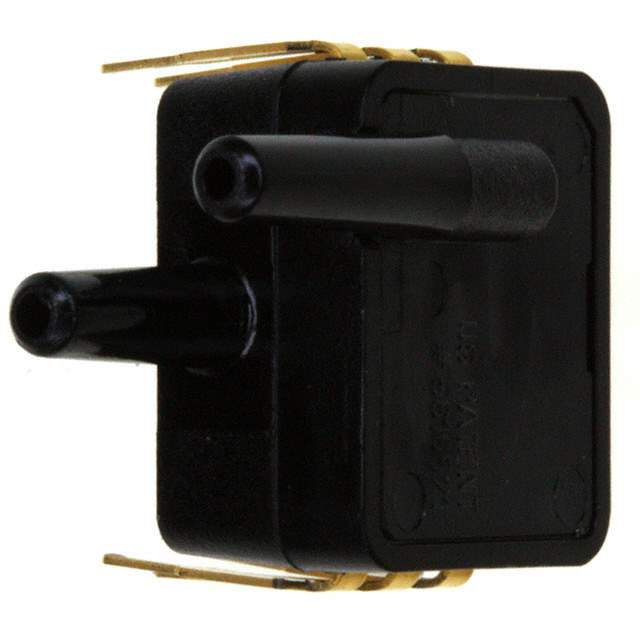

SX05DD4 Real Image
Same model may have multiple batches, images only for reference.

SX05DD4

Part No SX05DD4
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR HI-IMP 5PSID DIP PKG / Pressure Sensor 5PSI (34.47kPa) Differential Male - 0.09" (2.28mm) Tube, Dual 0 mV ~ 75 mV (5V) 6-DIP Module
Datasheet
SX05DD4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Package Bulk
Product Status Obsolete
Applications Board Mount
Pressure Type Differential
Operating Pressure 5PSI (34.47kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 75 mV (5V)
Accuracy ±0.5%
Voltage - Supply 12V
Port Size Male - 0.09" (2.28mm) Tube, Dual
Port Style Barbless
Maximum Pressure 20PSI (137.9kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 6-DIP Module
Supplier Device Package 6-DIP
Other Names 287-1068R,287-1068
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234825-SX05DD4
Ultra Librarian 3D Model Ultra Librarian SX05DD4 CAD Model

Description

The Honeywell Sensing and Productivity Solutions SX05DD4 is a differential pressure sensor designed for board mount applications.

  • Operating Pressure: 5PSI (34.47kPa)
  • Maximum Pressure: 20PSI (137.9kPa)
  • Voltage Supply: 12V
  • Output Type: Wheatstone Bridge
  • Output: 0 mV to 75 mV (5V)
  • Accuracy: ±0.5%
  • Temperature Range: -40°C to 85°C
  • Package: 6-DIP module package
