Same model may have multiple batches, images only for reference.

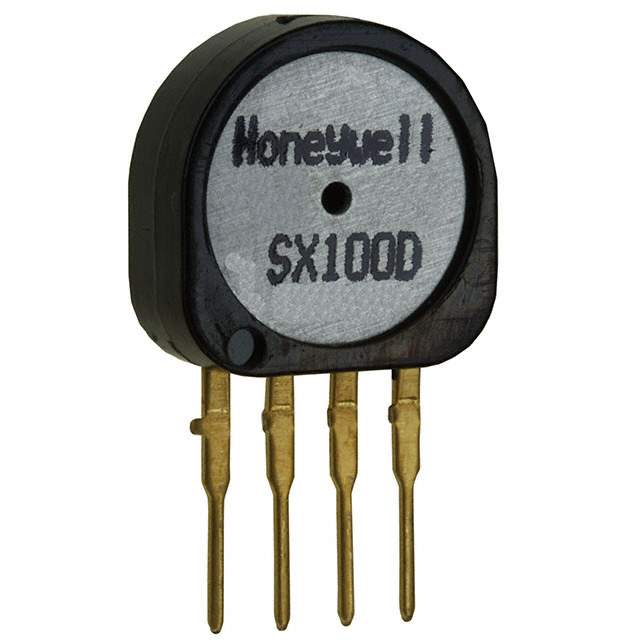

SX100D Real Image
Same model may have multiple batches, images only for reference.

SX100D

Part No SX100D
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR HI-IMP 100PSID BUTN PKG / Pressure Sensor 100PSI (689.48kPa) Differential 0 mV ~ 150 mV (5V) 4-SIP Module
Datasheet
SX100D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Package Bulk
Product Status Obsolete
Applications Board Mount
Pressure Type Differential
Operating Pressure 100PSI (689.48kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 150 mV (5V)
Accuracy ±0.5%
Voltage - Supply 12V
Port Style No Port
Maximum Pressure 150PSI (1034.21kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP Module
Supplier Device Package Button
Other Names 287-1073,287-1073R
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234836-SX100D
Ultra Librarian 3D Model Ultra Librarian SX100D CAD Model

Description

The Honeywell Sensing and Productivity Solutions SX100D is a pressure sensor/transducer that is now obsolete.

  • Voltage Supply: 12V
  • Output: 0 mV ~ 150 mV (5V) via a Wheatstone bridge
  • Accuracy: ±0.5%
  • Pressure: suitable for differential pressure
  • Maximum Operating Pressure: 100PSI (689.48kPa)
  • Operating Temperature Range: -40°C ~ 85°C
  • ECCN: EAR99 product
  • REACH: unaffected
