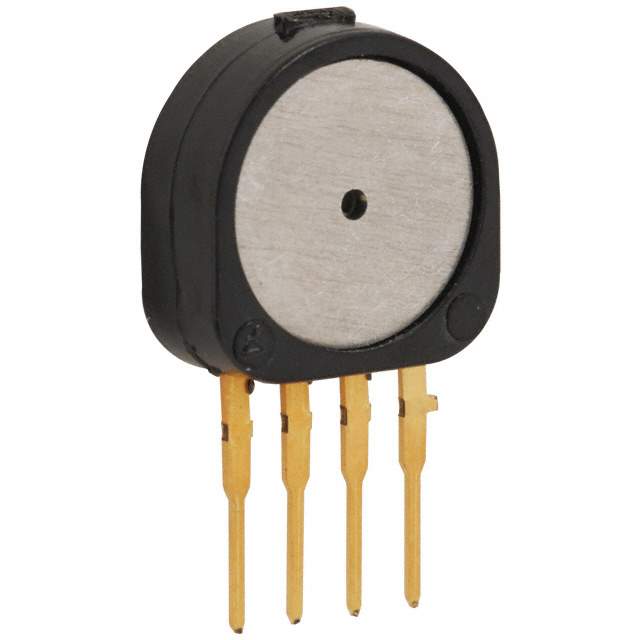

SX7100D Real Image
Same model may have multiple batches, images only for reference.

SX7100D

Part No SX7100D
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRESS DIFF 100PSI / Pressure Sensor 100PSI (689.48kPa) Differential 0 mV ~ 150 mV (5V) 4-SIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series SX7
Package Tray
Product Status Obsolete
Applications Board Mount
Pressure Type Differential
Operating Pressure 100PSI (689.48kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 150 mV (5V)
Accuracy ±0.5%
Voltage - Supply 12V
Port Style No Port
Termination Style PC Pin
Maximum Pressure 150PSI (1034.21kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP Module
Other Names 480-2872
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234767-SX7100D
Ultra Librarian 3D Model Ultra Librarian SX7100D CAD Model

Description

The SX7100D is a differential pressure sensor designed for board mount applications.

  • Output Type: Wheatstone Bridge
  • Accuracy: ±0.5%
  • Pressure Type: Differential
  • Operating Pressure: 100PSI (689.48kPa)
  • Maximum Pressure: 150PSI (1034.21kPa)
  • Package: 4-SIP Module
  • Voltage Supply: 12V
  • Operating Temperature: -40°C to 85°C
