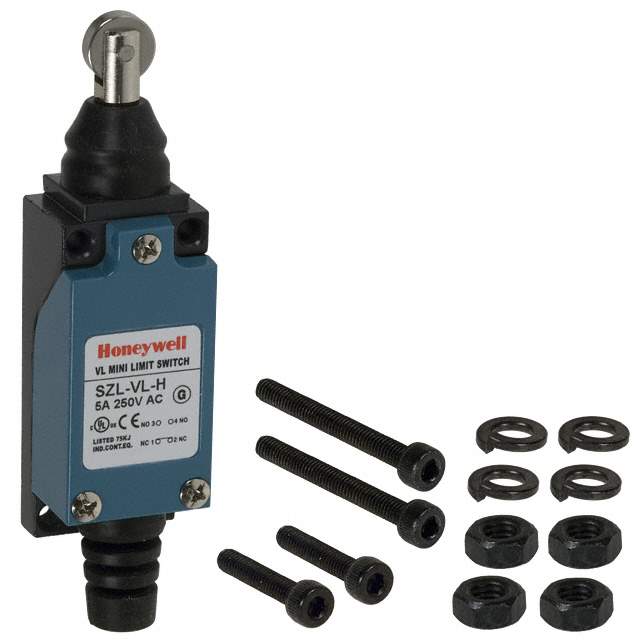

SZL-VL-H Real Image
Same model may have multiple batches, images only for reference.

SZL-VL-H

Part No SZL-VL-H
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 5A 250V / Switch SPDT (DB/DM) Chassis Mount
Datasheet
SZL-VL-H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series SZL-VL
Package Bulk
Product Status Obsolete
Circuit SPDT (DB/DM)
Switch Function On-Mom
Current Rating (Amps) 5A (AC), 400mA (DC)
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Actuator Type Roller Plunger
Mounting Type Chassis Mount
Termination Style Cable Gland
Ingress Protection IP64 - Dust Tight, Water Resistant
Operating Force 900gf
Release Force 150gf
Pretravel 0.060" (1.5mm)
Differential Travel 0.028" (0.7mm)
Overtravel 0.158" (4.0mm)
Temperature Range - Operating -20°C ~ 60°C
Mechanical Life 10,000,000 Cycles
Other Names SZLVLH,2266-SZL-VL-H,480-2709
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9055
Win Source Part Number 1233653-SZL-VL-H
Ultra Librarian 3D Model Ultra Librarian SZL-VL-H CAD Model

Description

The SZL-VL limit switch is a high-quality switch from Honeywell Sensing and Productivity Solutions.

  • Circuit: SPDT (DB/DM)
  • Switch Function: On-Mom
  • Actuator Type: Roller Plunger
  • Operating Force: 900gf
  • Mechanical Life: 10,000,000 Cycles
  • Release Force: 150gf
  • Operating Temperature: -20°C to 60°C
  • Ingress Protection: IP64 (Dust Tight, Water-Resistant)
  • Voltage Rating: 250V AC, 125V DC
  • Current Rating: 5A (AC), 400mA (DC)
  • Mounting Type: Chassis Mount
  • Termination Style: Cable Gland
  • Pretravel: 0.060" (1.5mm)
  • Differential Travel: 0.028" (0.7mm)
  • Overtravel: 0.158" (4.0mm)
