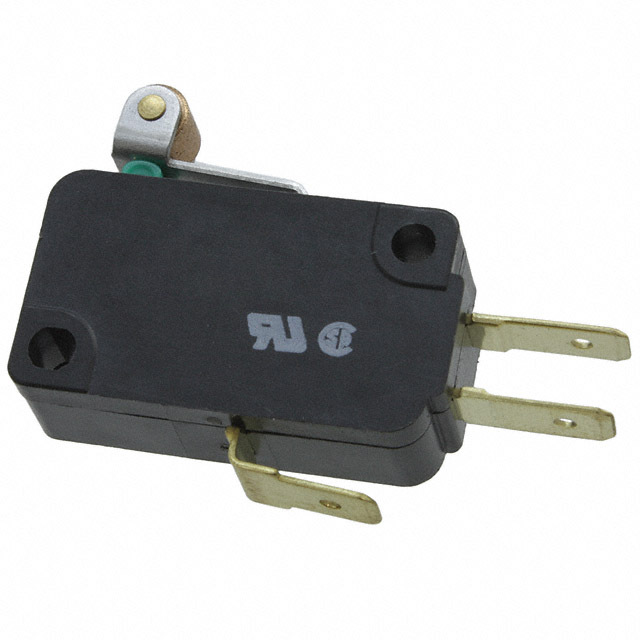

V7-1X1AD8-304

Part No V7-1X1AD8-304
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 6A 125V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 6A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Simulated Roller
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.187" (4.7mm)
Operating Force 34gf
Release Force 2.000gf
Operating Position 0.806" (20.5mm)
Pretravel 0.219" (5.6mm)
Differential Travel 0.050" (1.3mm)
Overtravel 0.115" (2.9mm)
Mechanical Life 10,000,000 Cycles
Electrical Life 100,000 Cycles
Temperature Range - Operating -40°C ~ 177°C
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1552146-V7-1X1AD8-304
Ultra Librarian 3D Model Ultra Librarian V7-1X1AD8-304 CAD Model
