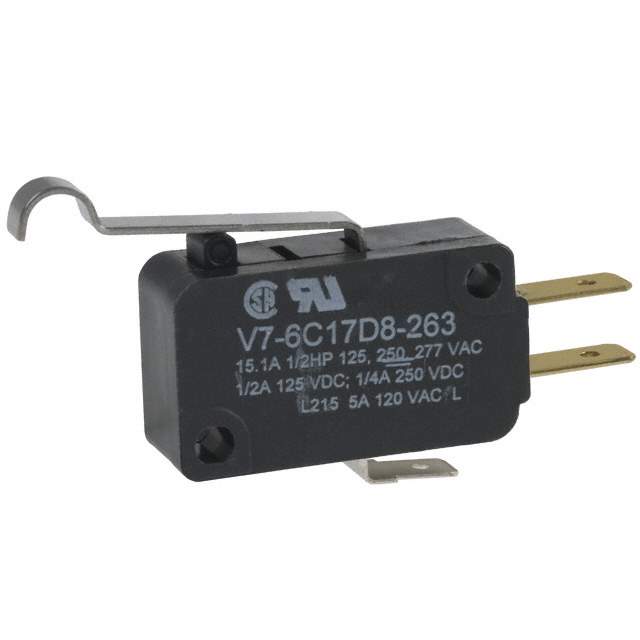

V7-6C17D8-263 Real Image
Same model may have multiple batches, images only for reference.

V7-6C17D8-263

Part No V7-6C17D8-263
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 15A 125V / Switch SPDT Chassis Mount
Datasheet
V7-6C17D8-263 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series V7
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 15A (AC) , 500mA (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Lever, Simulated Roller
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.187" (4.7mm)
Operating Force 227gf
Release Force 57gf
Operating Position 0.730" (18.5mm)
Pretravel 0.090" (2.3mm)
Differential Travel 0.065" (1.7mm)
Overtravel 0.080" (2.03mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 100,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number V7-6
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9040
Win Source Part Number 1337198-V7-6C17D8-263
Ultra Librarian 3D Model Ultra Librarian V7-6C17D8-263 CAD Model

Description

The Honeywell Sensing and Productivity Solutions V7-6C17D8-263 is a SPDT circuit limit switch with an operating force of 227gf and a mechanical life of 10,000,000 cycles.

  • Circuit: SPDT
  • Switch Function: On-Mom
  • Current Rating: 15A (AC), 500mA (DC)
  • Voltage Rating - AC: 125V
  • Voltage Rating - DC: 125V
  • Actuator Type: Lever, Straight
  • Operating Force: 227gf
  • Pretravel: 0.090" (2.3mm)
  • Overtravel: -
  • Differential Travel: 0.065" (1.7mm)
  • Operating Temperature: -40°C ~ 85°C
  • Mechanical Life: 10,000,000 Cycles
  • Electrical Life: 100,000 Cycles
  • Release Force: 57gf
  • Mounting Type: Chassis Mount
  • HTSUS: 8536.50.9040
