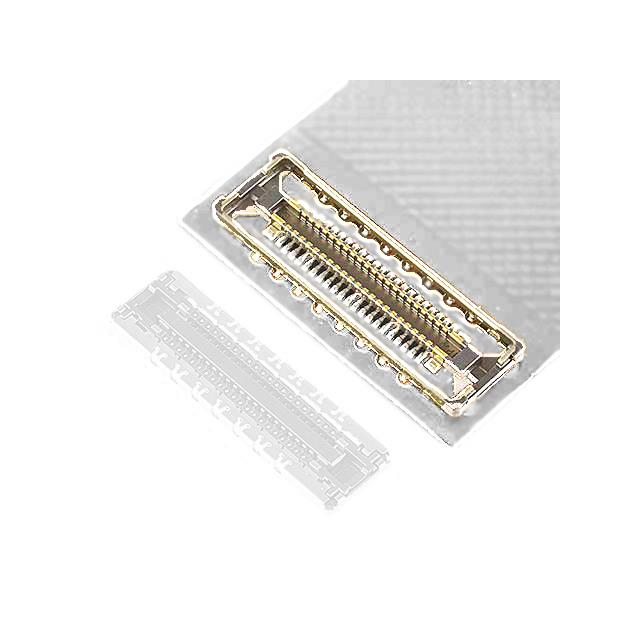

20697-056E-01 Real Image
Same model may have multiple batches, images only for reference.

20697-056E-01

Part No 20697-056E-01
Manufacturer I-Pex
Catalog Rectangular Connectors
Description NOVASTACK 35-HDP PLUG 56P  /  60 (56 + 4 Power) Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr I-PEX
Series NOVASTACK® 35
Package Tape & Reel
Connector Type Plug, Outer Shroud Contacts
Number of Positions 60 (56 + 4 Power)
Pitch 0.014" (0.35mm)
Number of Rows 2
Mounting SMD (SMT)
Features Shielded
Contact Finish Gold
Contact Finish Thickness 1.97µin (0.050µm)
Mated Stacking Heights 0.7mm
Height Above Board 0.026" (0.65mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 3508-20697-056E-01DKR,3508-20697-056E-01TR,3508-20697-056E-01CT
Standard Package 10,000
Win Source Part Number 1130942-20697-056E-01
Ultra Librarian 3D Model Ultra Librarian 20697-056E-01 CAD Model

Description

The 1130942-20697-056E-01 from I-Pex is a 2-row, 60 position plug connector with outer shroud contacts.

  • Pitch: 0.014" (0.35mm)
  • Shielded: Yes
  • Contact Finish: Gold with a thickness of 1.97µin (0.050µm)
  • Mated Stacking Heights: 0.7mm
  • Height Above the Board: 0.026" (0.65mm)
  • Mounting: SMD (SMT)
  • Packaging: Tape & reel
  • RoHS Compliant: Yes
  • ECCN: EAR99
