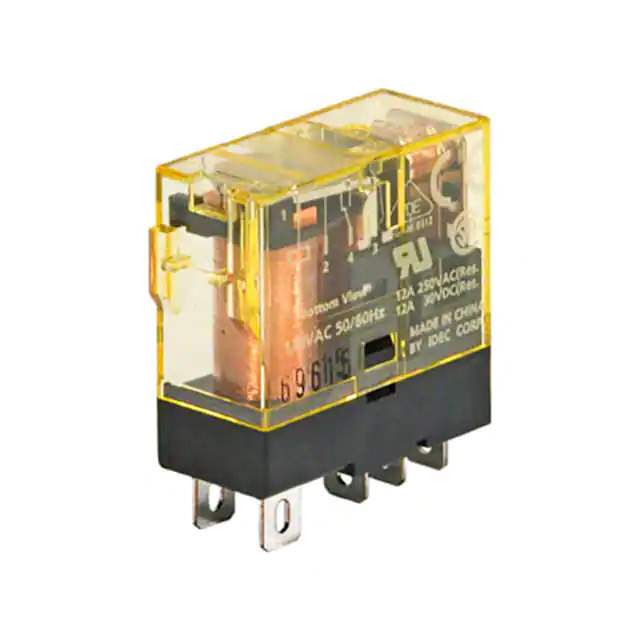

Same model may have multiple batches, images only for reference.

RJ1S-CL-D12

Name: RJ1S-CL-D12
Brand: IDEC
SKU: 891723
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RJ1S-CL-D12
Manufacturer	IDEC
Catalog	Power Relays, Over 2 Amps
Description	RELAY GEN PURPOSE SPDT 12A 12V
Datasheet	RJ1S-CL-D12 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Relays - Power Relays, Over 2 Amps
Mfr	IDEC
Series	RJ
Package	Bulk
Product Status	Active
Mounting Type	Socketable
Coil Voltage	12VDC
Contact Form	SPDT (1 Form C)
Contact Rating (Current)	12 A
Switching Voltage	250VAC - Nom
Coil Current	48 mA
Coil Type	Non Latching
Features	Lighted Indicator
Termination Style	Plug In, Quick Connect - 0.187" (4.7mm)
Must Operate Voltage	8.4 VDC
Must Release Voltage	1.2 VDC
Operate Time	15 ms
Release Time	10 ms
Temperature Range - Operating	-40°C ~ 70°C
Contact Material	Silver Nickel (AgNi)
Relay Type	General Purpose
Coil Resistance	271 Ohms
Base Product Number	RJ1S
Standard Package	1 pcs
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.49.0075
California Prop 65	Warning Information
Win Source Part Number	891723-RJ1S-CL-D12
Ultra Librarian 3D Model	Ultra Librarian RJ1S-CL-D12 CAD Model

Alternative Products

Description

The IDEC 891723-RJ1S-CL-D12 is a power relay component that is designed to handle currents over 2 Amps.

Series: RJ
Termination Style: Plug-in
Quick Connect Terminals: 0.187" (4.7mm)
Feature: Lighted indicator
Package: Bulk
Contact Form: SPDT
Contact Material: Silver nickel
Coil Voltage: 12VDC
Coil Resistance: 271 Ohms
Contact Rating (Current): 12A
Switching Voltage: 250VAC
Operating Temperature: -40°C to 70°C
Manufacturer: IDEC
Status: Active
