Same model may have multiple batches, images only for reference.

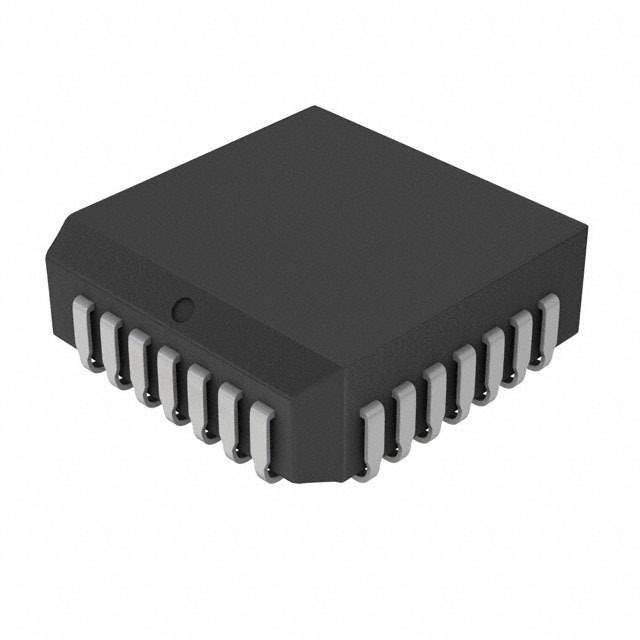

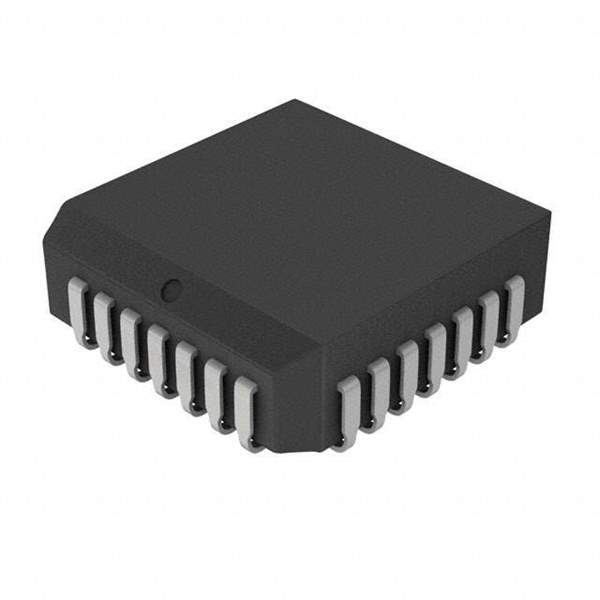

MPC9230EIR2 Real Image
Same model may have multiple batches, images only for reference.

MPC9230EIR2

Part No MPC9230EIR2
Manufacturer IDT, Integrated Device Technology Inc
Catalog Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
Description IC CLK SYNTH LV PECL 28-PLCC
Datasheet
MPC9230EIR2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer IDT, Integrated Device Technology Inc
Packaging Reel - TR
Status Active
Type Clock/Frequency Synthesizer
PLL Yes with Bypass
Input LVCMOS, Crystal
Output LVPECL
Number of Circuits 1
Differential - Input and Output No/Yes
Maximum Input Frequency 750MHz
Supply Voltage - Operating 3.135 V to 3.465 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 28-PLCC (11.5x11.5)
Win Source Part Number 126039-MPC9230EIR2
Ultra Librarian 3D Model Ultra Librarian MPC9230EIR2 CAD Model

Description

The IDT Clock/Frequency Synthesizer is an active electronic component manufactured by Integrated Device Technology Inc.

  • Win Source Part Number: 126039-MPC9230EIR2
  • Packaging: Reel - TR
  • Circuits: One
  • Mounting: SMD (SMT)
  • Inputs: LVCMOS and Crystal
  • Outputs: LVPECL
  • PLL: With Bypass
  • Category: Integrated Circuits
  • Status: Active
  • Temperature Range: -40°C to 85°C
  • Case/Package: 28-PLCC (11.5x11.5)
  • Operating Voltage: 3.135 V to 3.465 V
  • Maximum Input Frequency: 750MHz
