Same model may have multiple batches, images only for reference.

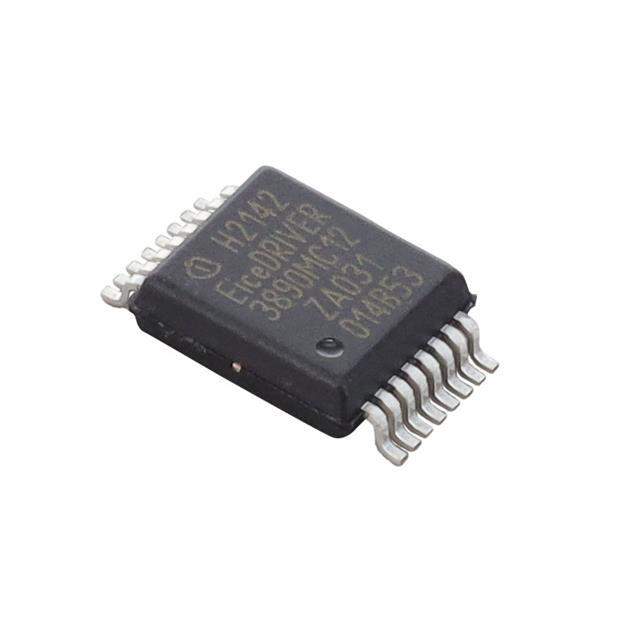

1ED3431MC12MXUMA1 Real Image
Same model may have multiple batches, images only for reference.

1ED3431MC12MXUMA1

Part No 1ED3431MC12MXUMA1
Manufacturer Infineon Technologies
Catalog Isolators - Gate Drivers
Description ISOLATED DRIVER PG-DSO-16 / 3A Gate Driver Capacitive Coupling 5700Vrms 1 Channel PG-DSO-16-28
Datasheet
1ED3431MC12MXUMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Isolators - Gate Drivers
Mfr Infineon Technologies
Series EiceDriver™
Package Tape & Reel
Technology Capacitive Coupling
Number of Channels 1
Voltage - Isolation 5700Vrms
Common Mode Transient Immunity (Min) 200V/ns
Propagation Delay tpLH / tpHL (Max) 270ns, 262ns
Rise / Fall Time (Typ) 15ns, 15ns
Current - Output High, Low 3A, 3A
Current - Peak Output 3A
Voltage - Output Supply 13V ~ 25V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 16-BSSOP (0.295", 7.50mm Width)
Supplier Device Package PG-DSO-16-28
Approval Agency UL, VDE
Base Product Number 1ED3431
Standard Package 1,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1349451-1ED3431MC12MXUMA1
Ultra Librarian 3D Model Ultra Librarian 1ED3431MC12MXUMA1 CAD Model

Description

The 1349451-1ED3431MC12MXUMA1 is an isolator from Infineon Technologies.

  • Manufacturer: Infineon Technologies
  • Series: EiceDriver™
  • Standard Package: 1,000
  • Technology: Capacitive Coupling
  • Current - Output High, Low: 3A, 3A
  • Rise / Fall Time (Typ): 15ns, 15ns
  • Number of Channels: 1
  • Voltage - Isolation: 5700Vrms
  • Common Mode Transient Immunity (Min): 200V/ns
  • Propagation Delay tpLH / tpHL (Max): 270ns, 262ns
  • Current - Peak Output: 3A
  • Mounting Type: Surface Mount
  • Package / Case: 16-BSSOP (0.295", 7.50mm Width)
  • Supplier Device Package: PG-DSO-16-28
  • Operating Temperature: -40°C ~ 125°C
  • MSL: 3 (168 Hours)
  • Voltage - Output Supply: 13V ~ 25V
  • REACH Status: REACH Unaffected
  • HTSUS: 8542.39.0001
  • Approval Agency: UL, VDE
  • Voltage - Forward (Vf) (Typ): -
