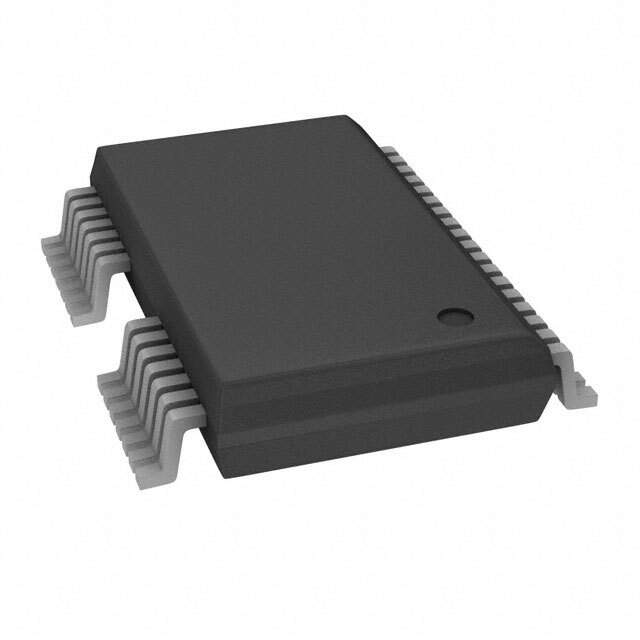

2ED020I12F2XUMA1 Real Image
Same model may have multiple batches, images only for reference.

2ED020I12F2XUMA1

Part No 2ED020I12F2XUMA1
Manufacturer Infineon Technologies
Catalog PMIC - Gate Drivers
Description IC DRIVER IGBT DSO36
Datasheet
2ED020I12F2XUMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Infineon Technologies
Series EiceDriver
Packaging Reel package
Driven Configuration Half-Bridge
Channel Type Independent
Number of Drivers 2
Gate Type IGBT
Operating Supply Voltage 13 V ~ 20 V
Logic Voltage - VIL, VIH 1.5V, 3.5V
Current - Peak Output (Source, Sink) 2A, 2A
Input Type Inverting, Non-Inverting
High Side Voltage - Max (Bootstrap) 1200V
Rise / Fall Time (Typ) 30ns, 50ns
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting SMD
Package 36-BSSOP (0.295", 7.50mm Width)
Manufacturer Package PG-DSO-36-38
Win Source Part Number 762168-2ED020I12F2XUMA1
Popularity Medium
Supply and Demand Status Limited
Family Name 2ED020I12F2
Introduction Date April 29, 2011
ECCN EAR99
Country of Origin Indonesia
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian 2ED020I12F2XUMA1 CAD Model

Description

The Infineon Technologies 2ED020I12F2XUMA1 is an EiceDriver series component from Infineon Technologies.

  • Package: 36-BSSOP (0.295", 7.50mm Width)
  • Operating Temperature Range: -40°C ~ 150°C (TJ)
  • Mounting: SMD
  • Operating Supply Voltage: 13 V ~ 20 V
  • Number of Drivers: 2
  • Gate Type: IGBT
  • Logic Voltage - VIL, VIH: 1.5V, 3.5V
  • Configuration: Half-bridge Driven
