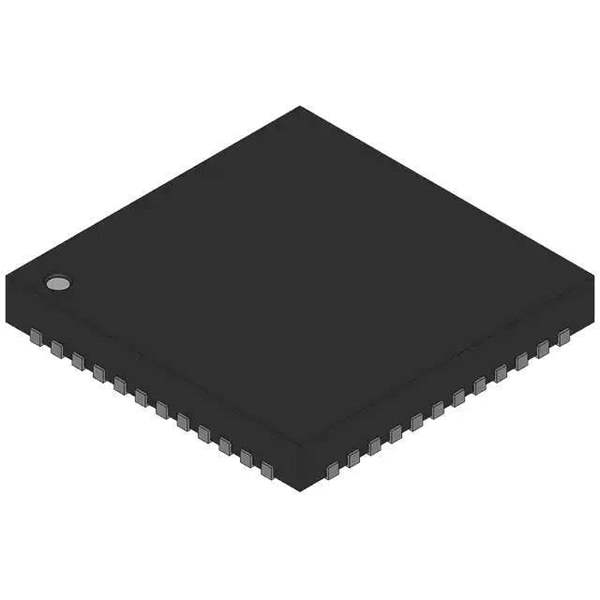

TLE7189F Real Image
Same model may have multiple batches, images only for reference.

TLE7189F

Part No TLE7189F
Manufacturer Infineon Technologies
Catalog PMIC - Gate Drivers
Description TLE7189 - GATE DRIVER
Datasheet
TLE7189F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Gate Drivers
Mfr Infineon Technologies
Package Bulk
Product Status Active
Programmable Not Verified
Driven Configuration Half-Bridge
Channel Type 3-Phase
Number of Drivers 3
Gate Type N-Channel MOSFET
Voltage - Supply 5.5V ~ 28V
Logic Voltage - VIL, VIH 0.75V, 2.1V
Current - Peak Output (Source, Sink) 1.5A, 1.5A
Input Type Non-Inverting
Rise / Fall Time (Typ) 150ns, 150ns
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 48-VQFN Exposed Pad
Supplier Device Package PG-VQFN-48-72
Base Product Number TLE7189
Standard Package 1 pcs
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 686880-TLE7189F
Ultra Librarian 3D Model Ultra Librarian TLE7189F CAD Model

Description

The 686880-TLE7189F is a gate driver integrated circuit (IC) designed for power management applications and is part of the TLE7189 series from Infineon Technologies.

  • Package: 48-VQFN exposed pad
  • Channel Type: 3-Phase
  • Configuration: Half-Bridge
  • Driven Type: Non-Inverting
  • Gate Type: N-Channel MOSFET
  • Voltage - Supply: 5.5V ~ 28V
  • Peak Output Current Source: 1.5A
  • Peak Output Current Sink: 1.5A
  • Rise / Fall Time Typ: 150ns
  • Operating Temperature: -40°C ~ 150°C
