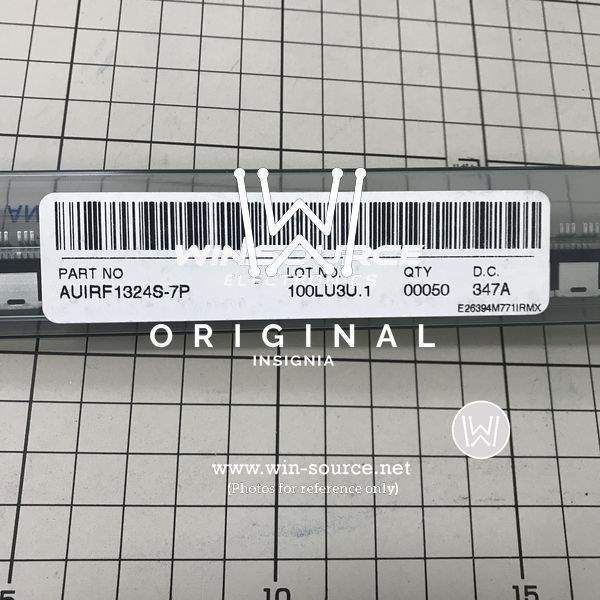

AUIRF1324S-7P Real Image AUIRF1324S-7P real image 2 AUIRF1324S-7P label picture AUIRF1324S-7P label picture 3 AUIRF1324S-7P label picture 4 AUIRF1324S-7P real image
Same model may have multiple batches, images only for reference.
AUIRF1324S-7P Real Image AUIRF1324S-7P real image 2 AUIRF1324S-7P label picture AUIRF1324S-7P label picture 3 AUIRF1324S-7P label picture 4 AUIRF1324S-7P real image
AUIRF1324S-7P Real Image AUIRF1324S-7P real image 2 AUIRF1324S-7P label picture AUIRF1324S-7P label picture 3 AUIRF1324S-7P label picture 4 AUIRF1324S-7P real image
Same model may have multiple batches, images only for reference.

AUIRF1324S-7P

Part No AUIRF1324S-7P
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 24V 240A D2PAK-7
Datasheet
AUIRF1324S-7P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Tube/Rail
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 24V
Continuous Drain Current at 25°C 240A (Tc)
Gate-Source Threshold Voltage 4V @ 250μA
Max Gate Charge 252nC @ 10V
Max Input Capacitance 7700pF @ 19V
Maximum Rds On at Id,Vgs 1 mOhm @ 160A, 10V
Mounting SMD (SMT)
Case / Package D2PAK (7-Lead)
Dimension TO-263-7, D2Pak (6 Leads + Tab)
Win Source Part Number 1020699-AUIRF1324S-7P
Family Name AUIRF1324S-7P
Introduction Date March 25, 2010
ECCN EAR99
Country of Origin Mexico
Halogen Free Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AUIRF1324S-7P CAD Model

Description

The AUIRF1324S-7P is a MOSFET transistor with an N-channel polarity. It has a drain-source breakdown voltage of 24V and a continuous drain current of 240A @ 25°C.

  • Gate-Source Threshold Voltage: 4V @ 250μA
  • Maximum Gate Charge: 252nC @ 10V
  • Maximum Input Capacitance: 7700pF @ 19V
  • Maximum Rds On: 1 mOhm @ 160A and 10V
  • Status: Active
  • Package: D2PAK (7-Lead)
  • Dimension: TO-263-7, D2Pak (6 Leads + Tab)
  • Supply and Demand Status: Balanced
  • Halogen-Free: Compliant
