Same model may have multiple batches, images only for reference.

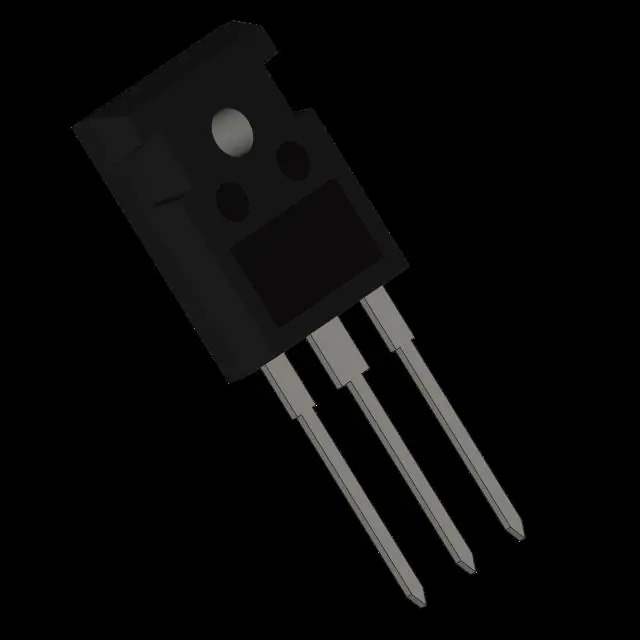

AUIRGP35B60PD Real Image
Same model may have multiple batches, images only for reference.

AUIRGP35B60PD

Part No AUIRGP35B60PD
Manufacturer Infineon Technologies
Catalog IGBTs - Single
Description IGBT, 60A I(C), 600V V(BR)CES, N
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - IGBTs - Single IGBTs
Mfr Infineon Technologies
Package Bulk
Product Status Active
IGBT Type NPT
Voltage - Collector Emitter Breakdown (Max) 600 V
Current - Collector (Ic) (Max) 60 A
Current - Collector Pulsed (Icm) 120 A
Vce(on) (Max) @ Vge, Ic 2.55V @ 15V, 35A
Power - Max 308 W
Switching Energy 220µJ (on), 215µJ (off)
Input Type Standard
Gate Charge 240 nC
Td (on/off) @ 25°C 26ns/110ns
Test Condition 390V, 22A, 3.3Ohm, 15V
Reverse Recovery Time (trr) 42 ns
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247AC
Base Product Number AUIRGP35B
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 0000.00.0000
Win Source Part Number 567203-AUIRGP35B60PD
Ultra Librarian 3D Model Ultra Librarian AUIRGP35B60PD CAD Model

Description

The AUIRGP35B60PD is an active single IGBT from Infineon Technologies.

  • Power Rating: 308W
  • IGBT Type: NPT
  • Collector-Emitter Breakdown Voltage: 600V
  • Maximum Collector Current: 60A
  • Pulsed Collector Current: 120A
  • Vce(on) @ 15V, 35A: 2.55V
  • Switching Energy (on): 220µJ
  • Switching Energy (off): 215µJ
  • Gate Charge: 240nC
  • Mounting Type: Through-Hole
  • Package: TO-247-3
