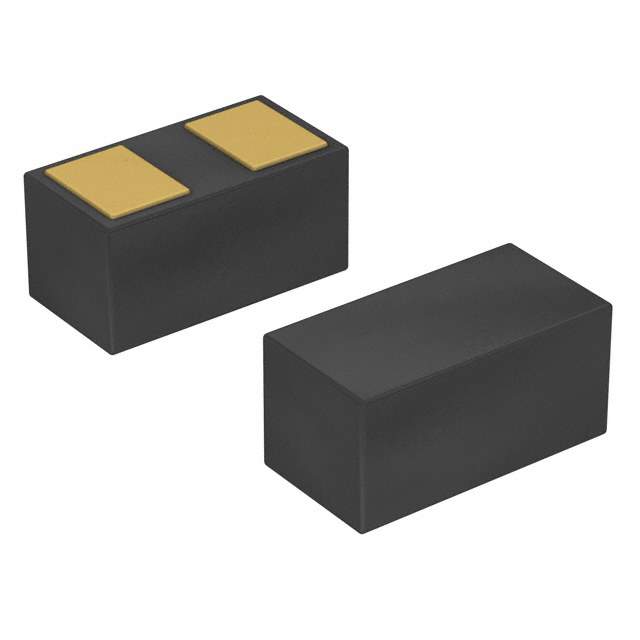

The BAR90-02LS is a silicon PIN diode designed for RF applications, particularly in antenna switching and tuning circuits. It offers a combination of low insertion loss and high isolation, making it suitable for demanding wireless communication systems.

Applications

• Antenna switches in mobile phones and wireless devices
• Tuning circuits in radio receivers
• Voltage variable attenuators (VVAs)
• RF switches in WLAN and Bluetooth applications
• Protection circuits

Features

• Low insertion loss
• High isolation
• High reverse voltage
• Fast switching speed
• Small package size (SOD323)
• RoHS compliant

Benefits

• Improved receiver sensitivity
• Reduced unwanted signal interference
• Enhanced system performance in high-frequency applications
• Compact design for smaller devices

Technical Specifications

The BAR90-02LS has a low forward resistance, typically around 3 Ohms. Its capacitance is optimized for high-frequency performance, typically around 0.35 pF. It features a high reverse voltage and fast switching speeds, making it ideal for dynamic switching applications. Housed in a SOD323 package, it is suitable for surface mount assembly. This diode is engineered to provide optimal performance in demanding RF environments, delivering minimal signal loss and excellent isolation.

This PIN diode is an excellent choice for applications where efficient and reliable RF switching is required. Its low insertion loss and high isolation ensure optimal signal transmission and reception, contributing to enhanced performance in wireless communication systems.
