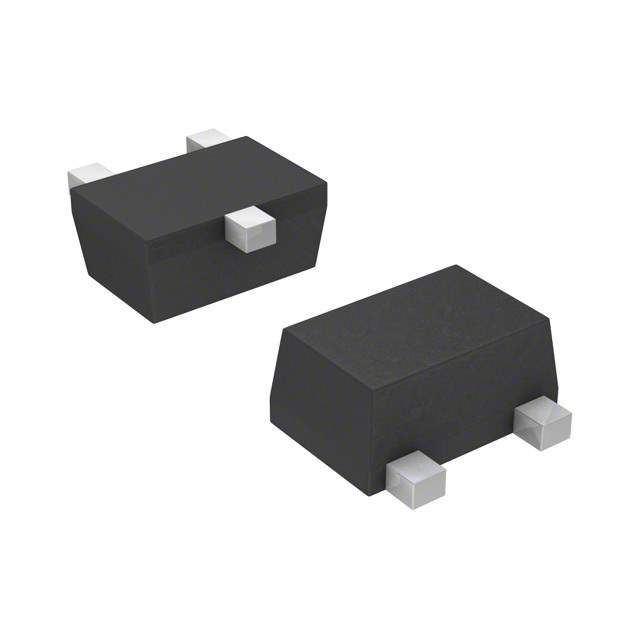

Same model may have multiple batches, images only for reference.

BCR114F

Get a Quote

Part No	BCR114F
Manufacturer	Infineon Technologies
Catalog	Transistors (BJT) - Single, Pre - Biased
Description	TRANS PREBIAS NPN 250MW TSFP-3
Datasheet	BCR114F Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Reel - TR
Status	Obsolete(EOL)
Transistor Polarity	NPN - Pre-Biased
Maximum Current Collector	100mA
VCEO Maximum Collector-Emitter Breakdown Voltage	50V
Resistor - Base (R1) (Ohms)	4.7k
Resistor - Emitter Base (R2) (Ohms)	10k
Typical Gain (hFE) (Min)	30 @ 5mA, 5V
Max Vce (sat)	300mV @ 500μA, 10mA
Collector Cut-off Current(Max)	100nA (ICBO)
Frequency - Transition	160MHz
Maximum Power Dissipation	250mW
Mounting	SMD (SMT)
Case / Package	PG-TSFP-3
Win Source Part Number	039580-BCR114F
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian BCR114F CAD Model

Alternative Products

Description

BCR114F

The BCR114F is a high-performance bipolar junction transistor (BJT) suitable for a variety of electronic applications. Designed to provide efficient switching and amplifying capabilities, this compact component is ideal for integration into complex circuits where space and performance are critical.

Key Features:
- High current gain
- Low saturation voltage
- Compact SOT-23 package
Applications:
- General-purpose switching
- Signal amplification
- Consumer electronics projects
Benefits:
- Reliable performance in demanding environments
- Energy-efficient solution
