The BCX54-16H6327 is a medium power NPN bipolar junction transistor (BJT) manufactured by Infineon Technologies. It is designed for amplifier and switching applications requiring moderate power dissipation. The '16' in the part number typically indicates a specific gain range, and the 'H6327' denotes a specific manufacturing or production code.

Applications

• Medium power amplifier stages
• Driver circuits for relays and solenoids
• Switching circuits in power supplies
• Linear regulators
• Motor control circuits

Features

• NPN Bipolar Junction Transistor: The transistor is an NPN type, making it suitable for applications where a sourcing current is required.
• Medium Power Dissipation: Designed to handle moderate power levels.
• High Collector Current: Capable of handling a significant amount of current through the collector.
• Low Saturation Voltage: Ensures efficient switching with minimal voltage drop.
• High Gain (hFE): Provides substantial current amplification.

Benefits

• Efficient Power Handling: Allows for use in applications requiring moderate power.
• Effective Switching: Enables fast and efficient switching operations.
• Reliable Performance: Ensures consistent operation in various environments.
• Compact Design: Suitable for space-constrained applications.
• Simplified Circuit Design: High gain reduces the need for additional amplification stages.

Additional Details

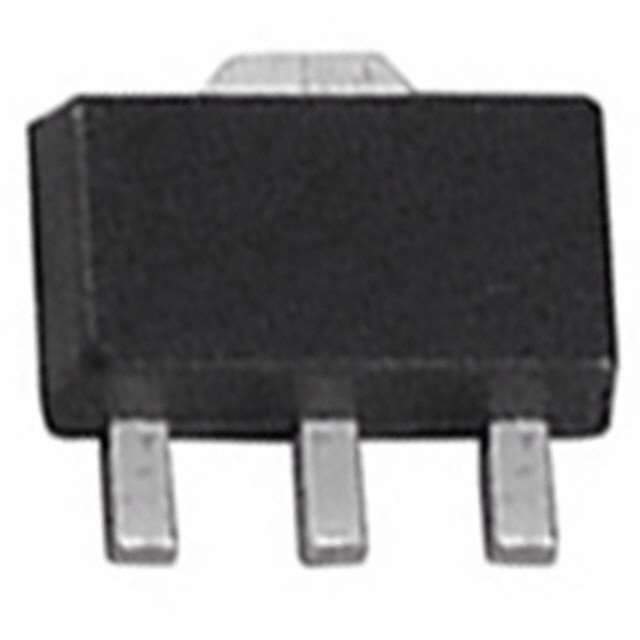

The BCX54-16H6327 is commonly available in a SOT-89 or similar surface-mount package. It's crucial to consult the Infineon Technologies datasheet for detailed specifications, including maximum ratings for voltage, current, and power dissipation, as well as thermal resistance. The datasheet also provides information on the transistor's gain characteristics at different collector current levels. Careful attention to these parameters will ensure optimal and reliable operation in the intended application. Always ensure proper heat sinking is employed when operating at or near the maximum power dissipation rating to prevent overheating and potential damage to the transistor.
