The BGA231N7E6327 is a Low Noise Amplifier (LNA) designed by Infineon Technologies. It's specifically tailored for use in Global Navigation Satellite Systems (GNSS) applications, providing high gain and low noise figure to amplify weak satellite signals.

Applications:

• GPS Receivers: Used in GPS devices to amplify the weak signals received from GPS satellites.
• GLONASS Receivers: Employed in GLONASS navigation systems for amplifying satellite signals.
• Galileo Receivers: Used in Galileo-based navigation devices to enhance the reception of satellite signals.
• BeiDou Receivers: Amplifies signals in BeiDou navigation systems.
• GNSS Modules: Integrated into GNSS receiver modules for various applications.

Features:

• Low Noise Figure: Minimizes the noise added to the satellite signal, improving sensitivity.
• High Gain: Provides sufficient amplification to boost weak satellite signals.
• Integrated Matching Network: Simplifies the design and reduces the number of external components.
• Small Package Size: Allows for compact and space-saving designs.
• Low Current Consumption: Extends the battery life of portable devices.

Benefits:

• Improved Navigation Accuracy: Low noise figure enhances the ability to detect weak satellite signals.
• Extended Battery Life: Low current consumption makes it suitable for portable devices.
• Simplified Design: Integrated matching network reduces design complexity.
• Compact Solution: Small package size allows for integration into small devices.
• Enhanced Signal Reception: High gain ensures strong signal levels for reliable operation.

Additional Details:

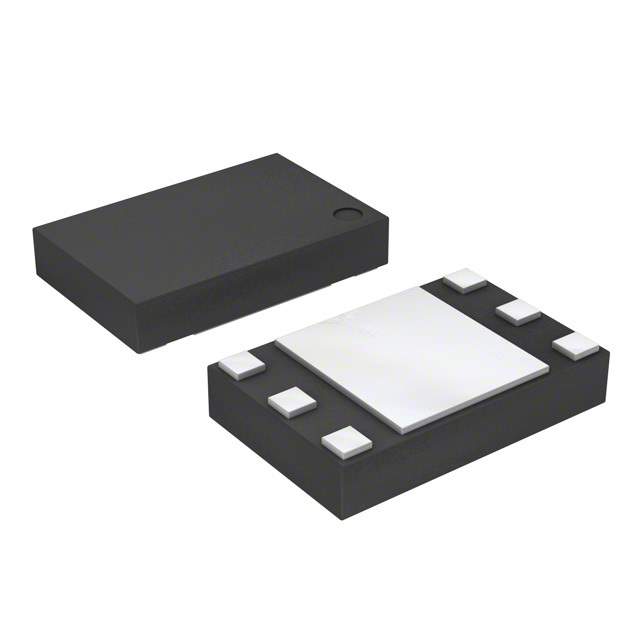

The BGA231N7E6327 typically comes in a small surface-mount package, allowing for automated assembly and integration into compact GNSS devices. It operates at the frequencies used by common GNSS systems. The integrated matching network simplifies the design by reducing the need for external matching components.

Technical Specifications (General):

• Frequency Range: Specifically designed for GNSS frequencies (e.g., 1.575 GHz for GPS L1 band)
• Gain: Specified in datasheet (typical values range from 15 dB to 20 dB)
• Noise Figure: Specified in datasheet (typical values range from 0.5 dB to 1.0 dB)
• Supply Voltage: Typically around 1.5V to 3.6V
• Package Type: Small surface-mount package (e.g., TSNP-7-1)

Consult the datasheet for precise electrical characteristics, application circuits, and layout recommendations.
