Same model may have multiple batches, images only for reference.

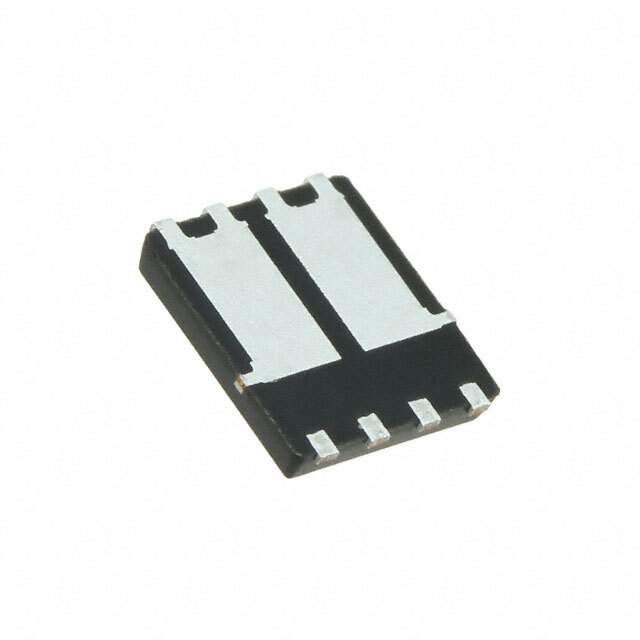

BSC076N04NDATMA1 Real Image
Same model may have multiple batches, images only for reference.

BSC076N04NDATMA1

Part No BSC076N04NDATMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description TRENCH <= 40V
Datasheet
BSC076N04NDATMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 46 Weeks
Features Mosfet Array 2 N-Channel (Dual) 40V 20A (Tc) 2.3W (Ta), 65W (Tc) Surface Mount PG-TDSON-8-4
Manufacturer Infineon Technologies
Series OptiMOS™-T2
Package Reel - TR
Operating Temperature Range -55°C ~ 175°C (TJ)
Mounting Surface Mount
Package 8-PowerVDFN
Case / Package PG-TDSON-8-4
Family Name BSC076
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number 448-BSC076N04NDATMA1CT, 448-BSC076N04NDATMA1DKR, 448-BSC076N04NDATMA1TR, SP002594330
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 864653-BSC076N04NDATMA1
Ultra Librarian 3D Model Ultra Librarian BSC076N04NDATMA1 CAD Model

Description

The Infineon Technologies BSC076N04NDATMA1 is a Mosfet Array 2 N-Channel (Dual) 40V 20A (Tc) 2.3W (Ta), 65W (Tc) Surface Mount PG-TDSON-8-4.

  • Family Name: BSC076
  • Operating Temperature Range: -55°C ~ 175°C (TJ)
  • Package: PG-TDSON-8-4
  • Mounting: surface
  • ECCN: EAR99
  • HTSUS Code: 8541.29.0095
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 46 weeks
  • Package Contains: 5000 pieces
  • Other Part Numbers: 448-BSC076N04NDATMA1CT, 448-BSC076N04NDATMA1DKR, and 448-BSC076N04NDATMA1TR
