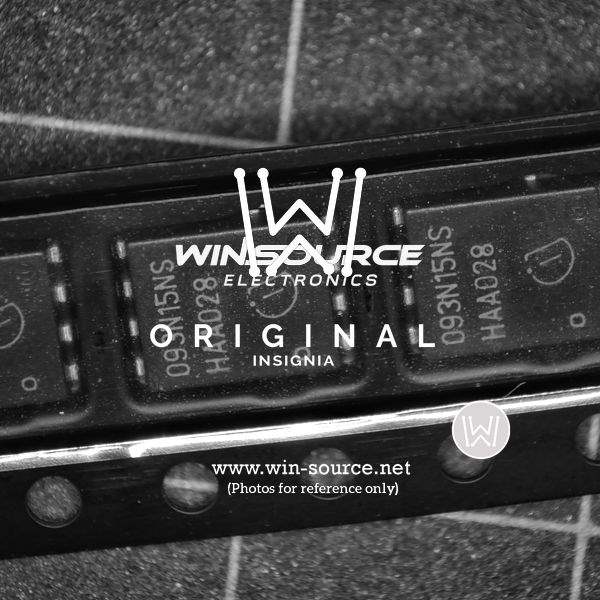

BSC093N15NS5ATMA1

Part No BSC093N15NS5ATMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 150V 87A TDSON-8
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 150V
Continuous Drain Current at 25°C 87A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 8V, 10V
Gate-Source Threshold Voltage 4.6V @ 107μA
Max Gate Charge 40.7nC @ 10V
Max Input Capacitance 3230pF @ 75V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 139W (Tc)
Maximum Rds On at Id,Vgs 9.3 mOhm @ 44A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package PG-TDSON-8
Dimension 8-PowerTDFN
Win Source Part Number 1024347-BSC093N15NS5ATMA1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BSC093N15NS5ATMA1 CAD Model

Description

BSC093N15NS5ATMA1 from Infineon Technologies is listed in the Transistors - FETs, MOSFETs - RF category and is typically evaluated by engineers for high-frequency switching and RF-related power design needs. In practical applications, parts in this class may be considered for telecom infrastructure, industrial RF stages, power conversion blocks, and other compact designs where efficiency, thermal behavior, and switching performance matter. Infineon is widely recognized for robust semiconductor solutions, so this device may be relevant for teams seeking a manufacturer-backed option for new designs or controlled maintenance builds. The current lifecycle status for BSC093N15NS5ATMA1 is information not available, so procurement and design teams should confirm availability directly with Infineon or authorized distribution before committing it into production. RoHS compliance information is also not available from the provided input, and engineers should verify the latest environmental compliance status, declarations, and supporting documents using the official datasheet or manufacturer compliance resources.
