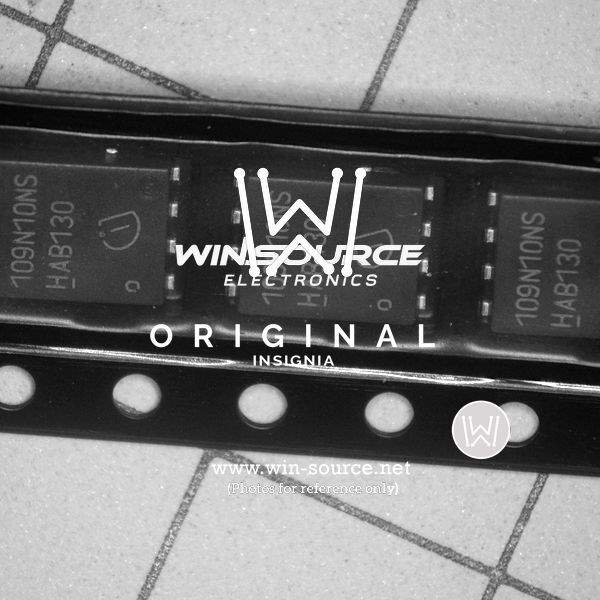

BSC109N10NS3GATMA1 Infineon Technologies BSC109N10NS3GATMA1 real image14945
Same model may have multiple batches, images only for reference.
BSC109N10NS3GATMA1 Infineon Technologies BSC109N10NS3GATMA1 real image14945
BSC109N10NS3GATMA1 Infineon Technologies BSC109N10NS3GATMA1 real image14945
Same model may have multiple batches, images only for reference.

BSC109N10NS3GATMA1

Part No BSC109N10NS3GATMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 100V 63A 8TDSON
Datasheet
BSC109N10NS3GATMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 100V
Continuous Drain Current at 25°C 63A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 6V, 10V
Gate-Source Threshold Voltage 3.5V @ 45μA
Max Gate Charge 35nC @ 10V
Max Input Capacitance 2500pF @ 50V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 78W (Tc)
Maximum Rds On at Id,Vgs 10.9 mOhm @ 46A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package PG-TDSON-8
Dimension 8-PowerTDFN
Win Source Part Number 1000863-BSC109N10NS3GATMA1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BSC109N10NS3GATMA1 CAD Model

Description

The Infineon Technologies 1000863-BSC109N10NS3GATMA1 is an N-Channel MOSFET with a drain-source breakdown voltage of 100V and a continuous drain current of 63A @ 25°C.

  • Type: N-Channel MOSFET
  • Drain-Source Breakdown Voltage: 100V
  • Continuous Drain Current: 63A @ 25°C
  • Maximum On-Resistance: 10.9 mOhm @ 46A and 10V gate-source voltage
  • Gate-Source Threshold Voltage: 3.5V @ 45μA
  • Maximum Input Capacitance: 2500pF @ 50V
  • Package: PG-TDSON-8
  • Mounting: SMD (SMT)
  • Power Dissipation: 78W (Tc)
  • Operating Temperature Range: -55°C to 150°C (TJ)
