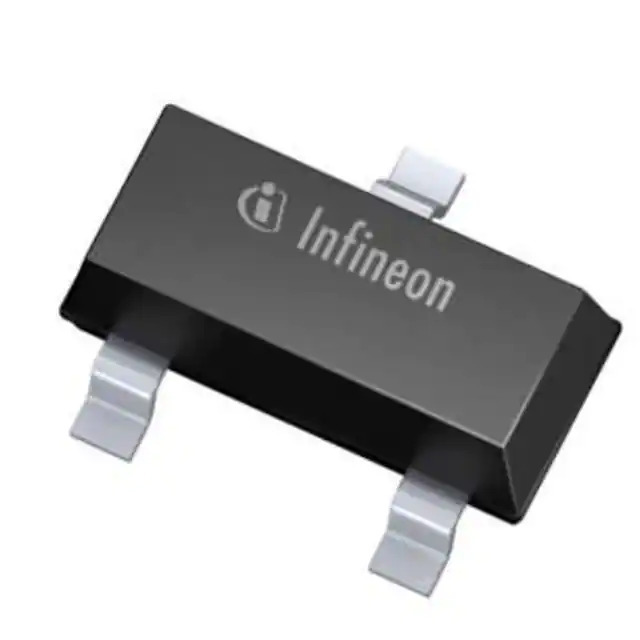

BSS139IXTSA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

BSS139IXTSA1

Part No BSS139IXTSA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description SMALL SIGNAL MOSFETS PG-SOT23-3 / N-Channel 250 V 100mA (Ta) 360mW (Ta) Surface Mount PG-SOT-23-3
Datasheet
BSS139IXTSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr Infineon Technologies
Series -
Package Tape & Reel
Product Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 250 V
Current - Continuous Drain (Id) @ 25°C 100mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) 0V, 10V
Rds On (Max) @ Id, Vgs 14Ohm @ 100mA, 10V
Vgs(th) (Max) @ Id 1V @ 56µA
Gate Charge (Qg) (Max) @ Vgs 2.3 nC @ 5 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 60 pF @ 25 V
FET Feature -
Power Dissipation (Max) 360mW (Ta)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package PG-SOT-23-3
Package / Case TO-236-3, SC-59, SOT-23-3
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.21.0095
Win Source Part Number 1354471-BSS139IXTSA1
Ultra Librarian 3D Model Ultra Librarian BSS139IXTSA1 CAD Model

Description

The BSS139IXTSA1 is a single FET MOSFET transistor manufactured by Infineon Technologies.

  • FET Type: N-Channel
  • FET Feature: Standard
  • Drain to Source Voltage (Vdss): 250V
  • Current - Continuous Drain (Id) @ 25°C: 100mA (Ta)
  • Rds On (Max) @ Id, Vgs: 10Ohm @ 100mA, 10V
  • Vgs(th) (Max) @ Id: 3V @ 1mA
  • Gate Charge (Qg) @ Vgs: 2.3nC @ 5V
  • Vgs - Gate to Source: ±20V
  • Input Capacitance (Ciss) @ Vds: 60pF @ 25V
  • Power - Max: 360mW (Ta)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: PG-SOT-23-3
  • Package / Case: TO-236-3, SC-59, SOT-23-3
  • Packaging: Tape & Reel (TR)
  • Series: BSS139IXTSA1
  • MSL: 1 (Unlimited)
  • Base Product Number: BSS139I
  • Technology: MOSFET (Metal Oxide)
  • HTSUS: 8541.21.0095
  • ECCN: EAR99
  • REACH Status: Unaffected
