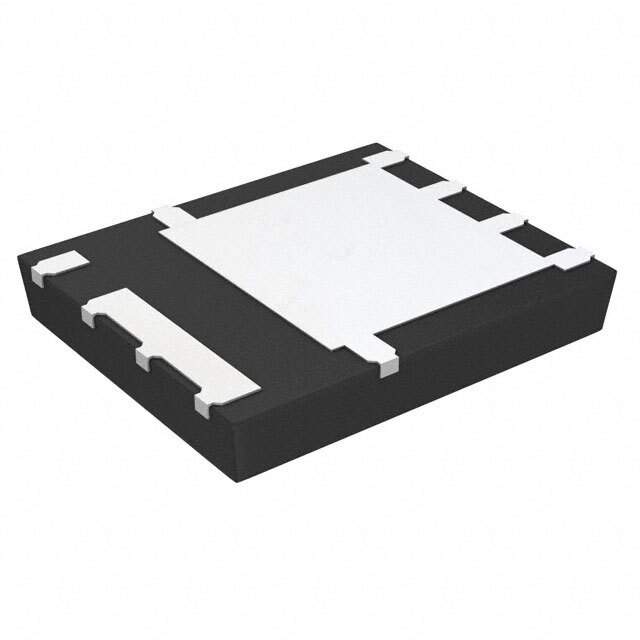

BSZ0602LSATMA1 Real Image
Same model may have multiple batches, images only for reference.

BSZ0602LSATMA1

Part No BSZ0602LSATMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 80V 13A/40A TSDSON
Datasheet
BSZ0602LSATMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features N-Channel 80 V 13A (Ta), 40A (Tc) 69W (Tc) Surface Mount PG-TDSON-8 FL
Manufacturer Infineon Technologies
Series OptiMOS™ 5
Package Reel - TR
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Surface Mount
Package 8-PowerTDFN
Case / Package PG-TDSON-8 FL
Family Name BSZ0602
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number 448-BSZ0602LSATMA1TR, SP001589450, 448-BSZ0602LSATMA1DKR, 448-BSZ0602LSATMA1CT
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 864784-BSZ0602LSATMA1
Ultra Librarian 3D Model Ultra Librarian BSZ0602LSATMA1 CAD Model

Description

The BSZ0602LSATMA1 is a N-channel MOSFET transistor from Infineon Technologies.

  • Series: OptiMOS™ 5
  • Applications: Power supplies, motor control circuits, and DC/DC converters.
  • On-State Resistance: 2.8 mOhm
  • Drain-Source Voltage: 80 V (maximum)
  • Continuous Drain Current: 13 A
  • Package Type: PG-TDSON-8 FL (surface mount)
