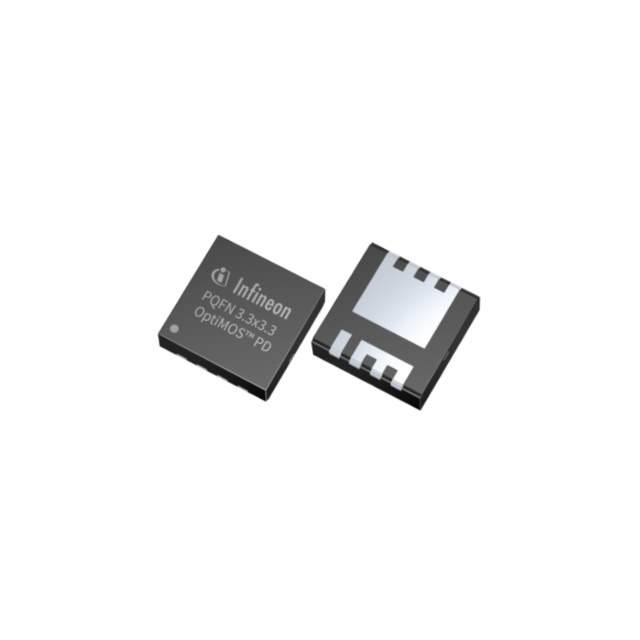

Same model may have multiple batches, images only for reference.

BSZ0703LSATMA1

Name: BSZ0703LSATMA1
Brand: Infineon Technologies
SKU: 962350
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	BSZ0703LSATMA1
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 60V 40A TSDSON / N-Channel 60 V 40A (Tc) 46W (Tc) Surface Mount PG-TSDSON-8-26
Datasheet	BSZ0703LSATMA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Infineon Technologies
Series	OptiMOS™
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6.5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.3V @ 20µA
Gate Charge (Qg) (Max) @ Vgs	13 nC @ 4.5 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1800 pF @ 30 V
FET Feature	Standard
Power Dissipation (Max)	46W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	PG-TSDSON-8-26
Package / Case	8-PowerTDFN
Base Product Number	BSZ0703
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	SP001614096,448-BSZ0703LSATMA1TR,448-BSZ0703LSATMA1DKR,448-BSZ0703LSATMA1CT,BSZ0703LSATMA1-ND
Standard Package	5,000
Win Source Part Number	962350-BSZ0703LSATMA1
Ultra Librarian 3D Model	Ultra Librarian BSZ0703LSATMA1 CAD Model

Alternative Products

Description

The Infineon Technologies 962350-BSZ0703LSATMA1 is a N-channel MOSFET transistor.

Drain to Source Voltage: Up to 60V
Continuous Drain Current: 40A @ 25°C
Rds On (Max) @ Id, Vgs: 6.5mOhm @ 20A, 10V
Gate Charge (Qg) (Max) @ Vgs: 13 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 1800 pF @ 30 V
Package: 8-PowerTDFN
Power Dissipation: 46W (Tc)
FET Type: Standard
