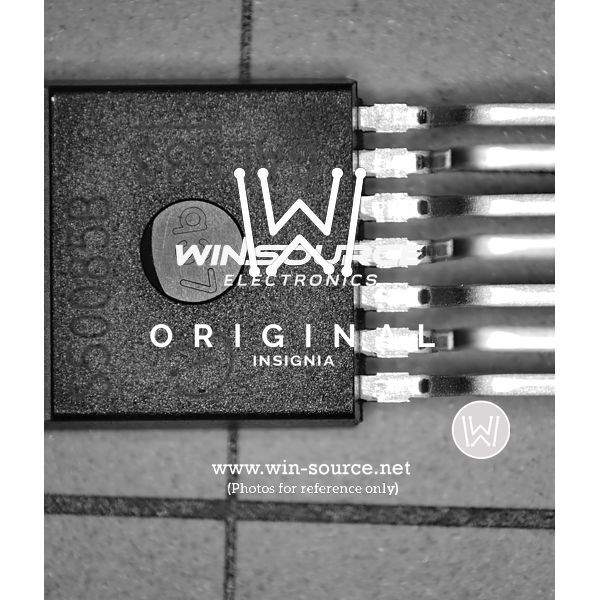

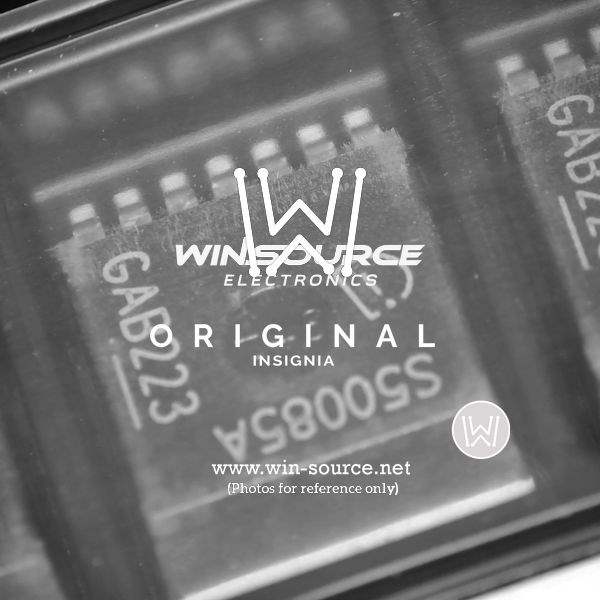

BTS50085-1TMB Real Image BTS50085-1TMB real image15236 BTS50085-1TMB Real Image1 BTS50085-1TMB Real Image2
Same model may have multiple batches, images only for reference.
BTS50085-1TMB Real Image BTS50085-1TMB real image15236 BTS50085-1TMB Real Image1 BTS50085-1TMB Real Image2
BTS50085-1TMB Real Image BTS50085-1TMB real image15236 BTS50085-1TMB Real Image1 BTS50085-1TMB Real Image2
Same model may have multiple batches, images only for reference.

BTS50085-1TMB

Part No BTS50085-1TMB
Manufacturer Infineon Technologies
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC SWITCH PWR HISIDE TO220-7
Datasheet
BTS50085-1TMB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Tube/Rail
Status Active
Switch Type General Purpose
Number of Outputs 1
Output Type N-Channel
Voltage - Load 5 V to 58 V
Supply Voltage - Operating Not Required
Current - Output (Max) 38A
Rds On (Typ) 7.2 mOhm
Input Type Non-Inverting
Features Auto Restart
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Temperature Range - Operating -40°C to 150°C (TJ)
Case / Package PG-TO220-7
Win Source Part Number 1024899-BTS50085-1TMB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BTS50085-1TMB CAD Model

Description

The Infineon Technologies BTS50085-1TMB is a high-performance power switch designed for use in automotive applications.

  • Features: Auto-restart and fault protection, including current limiting, open load detect, over-temperature, and over-voltage protection
  • Output: Single
  • Transistor Type: N-channel MOSFET
  • Input: Non-inverting
  • Current Output: Up to 38A
  • Voltage Load Range: 5 V to 58 V
  • Package: Tube/rail
  • Compliance: RoHS compliant
  • Ideal for: Use in automotive applications such as power windows, door locks, and other high-current applications
