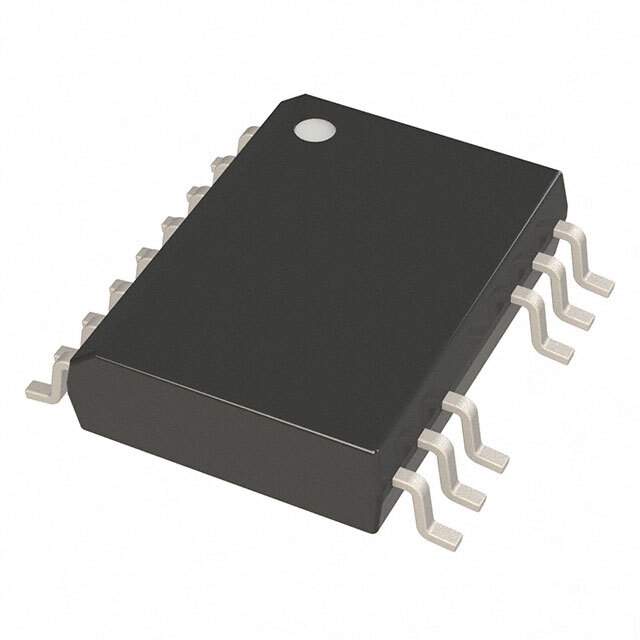

The UCC21530QDWKRQ1 is a robust, high-performance isolated dual-channel gate driver designed by Texas Instruments specifically for driving power switches such as IGBTs, SiC MOSFETs, and GaN HEMTs. Engineered with state-of-the-art technology, this gate driver is suitable for a wide range of applications including motor control, power supplies, and renewable energy inverters.

Key Features

• Isolation: The UCC21530QDWKRQ1 offers reinforced isolation of 5.7 kVRMS, ensuring safe signal transmission between the low-voltage and high-voltage domains, and is compliant with UL1577 and VDE V 0884-10 standards.
• Peak Output Current: Capable of delivering peak output currents of ±4 A, this driver can effectively switch power devices at high speeds, improving system performance and efficiency.
• Dual-Channel Configuration: With two independent channels, it allows for flexible designs, including the ability to drive two separate switches or a half-bridge configuration.
• Wide Operating Range: The device operates over a wide supply voltage range from 15 V to 18 V, accommodating various application requirements.
• Robustness: Features such as UVLO (Under-Voltage Lockout) for both primary and secondary sides, and over-temperature protection, ensure reliable operation under adverse conditions.
• CMC Immunity: Excellent Common-Mode Transient Immunity (CMTI) of 100 V/ns minimizes the risk of erroneous gate driver outputs in noisy environments.

Applications

The UCC21530QDWKRQ1's versatility makes it an ideal choice for a variety of applications, including but not limited to:

• Industrial Drives
• Power Converters/Inverters
• Switch Mode Power Supplies (SMPS)
• Renewable Energy Systems
• Electric Vehicle (EV) Charging
• Uninterruptible Power Supplies (UPS)

Quality and Reliability

With Texas Instruments' commitment to quality, the UCC21530QDWKRQ1 is designed to meet the stringent requirements of automotive applications and is AEC-Q100 qualified. This ensures that the product will perform reliably in the harsh environments typical of automotive and industrial applications.
