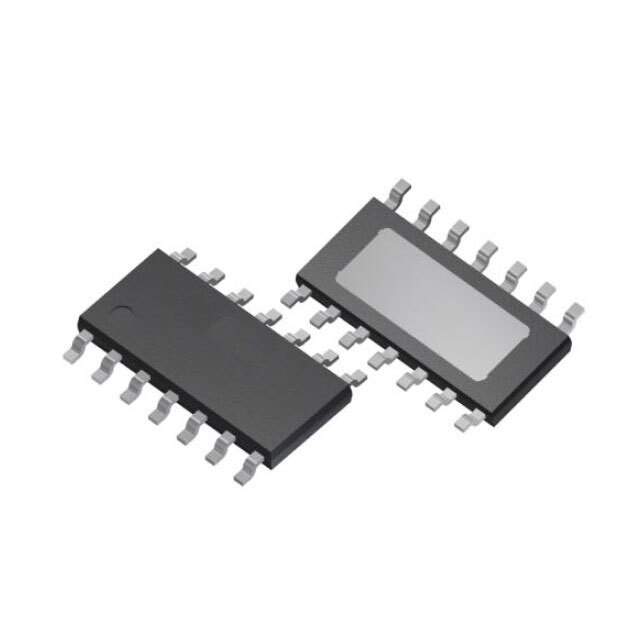

BTT60302ERAXUMA1 Real Image
Same model may have multiple batches, images only for reference.

BTT60302ERAXUMA1

Part No BTT60302ERAXUMA1
Manufacturer Infineon Technologies
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC PWR SWITCH N-CHAN 1:1 TDSO-14  /  Power Switch/Driver 1:1 N-Channel 4A PG-TDSO-14-31
Datasheet
BTT60302ERAXUMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Power Distribution Switches, Load Drivers
Mfr Infineon Technologies
Series Automotive, AEC-Q100, PROFET®
Package Tape & Reel
Switch Type General Purpose
Number of Outputs 2
Output Configuration High Side
Output Type N-Channel
Interface On/Off
Voltage - Load 5V ~ 36V
Supply Voltage - Operating Not Required
Current - Output (Max) 4A
Rds On (Typ) 32mOhm
Input Type Non-Inverting
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting SMD (SMT)
Supplier Device Package PG-TDSO-14-31
Package / Case 14-SOIC (0.154", 3.90mm Width) Exposed Pad
Base Product Number BTT60302
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names SP001682656,448-BTT60302ERAXUMA1TR,448-BTT60302ERAXUMA1CT,BTT60302ERAXUMA1-ND,448-BTT60302ERAXUMA1DKR
Standard Package 3,000
Win Source Part Number 963241-BTT60302ERAXUMA1
Ultra Librarian 3D Model Ultra Librarian BTT60302ERAXUMA1 CAD Model

Description

The Infineon Technologies BTT60302ERAXUMA1 is a power distribution switch that has two outputs with a maximum current output of 4A.

  • Outputs: Two
  • Current Output: 4A (Max)
  • Output Configuration: High-Side
  • Voltage Load: 5V to 36V
  • Rds On (Typ): 32mOhm
  • Package: 14-SOIC (0.154", 3.90mm Width) Exposed Pad
  • Application: Automotive
  • Temperature Range: -40°C to 150°C
