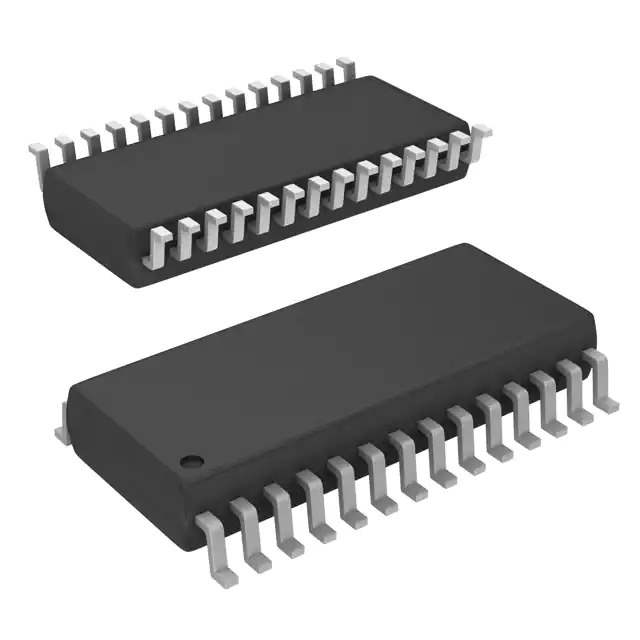

CY8C24423A-24SXIT Real Image
Same model may have multiple batches, images only for reference.

CY8C24423A-24SXIT

Part No CY8C24423A-24SXIT
Manufacturer Infineon Technologies
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 4KB FLASH 28SOIC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Infineon Technologies
Series PSOC®1 CY8C24xxx
Package Tape & Reel
Product Status Active
Programmable Not Verified
Core Processor M8C
Core Size 8-Bit
Speed 24MHz
Connectivity I2C, SPI, UART/USART
Peripherals POR, PWM, WDT
Number of I/O 24
Program Memory Size 4KB (4K x 8)
Program Memory Type FLASH
RAM Size 256 x 8
Voltage - Supply (Vcc/Vdd) 2.4V ~ 5.25V
Data Converters A/D 10x14b; D/A 2x9b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 28-SOIC (0.295", 7.50mm Width)
Supplier Device Package 28-SOIC
Base Product Number CY8C24423
Standard Package 1,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 583120-CY8C24423A-24SXIT
Ultra Librarian 3D Model Ultra Librarian CY8C24423A-24SXIT CAD Model

Description

The 583120-CY8C24423A-24SXIT is an embedded microcontroller from the PSOC®1 CY8C24xxx series.

  • Application: electronic devices that require microcontroller functionality
  • Core Processor: M8C
  • Operating Speed: 24MHz
  • Package: tape & reel
  • Mounting: surface mount
  • I/O Pins: 24
  • Connectivity: I2C, SPI, and UART/USART
  • Peripherals: POR (Power-On Reset), PWM (Pulse Width Modulation), and WDT (Watchdog Timer)
  • Program Memory Size: 4KB
  • Memory Type: FLASH
  • RAM Size: 256 x 8
  • Voltage Supply: 2.4V to 5.25V
  • Operating Temperature: -40°C to 85°C
  • Manufacturer: Infineon Technologies
  • Product Status: active
