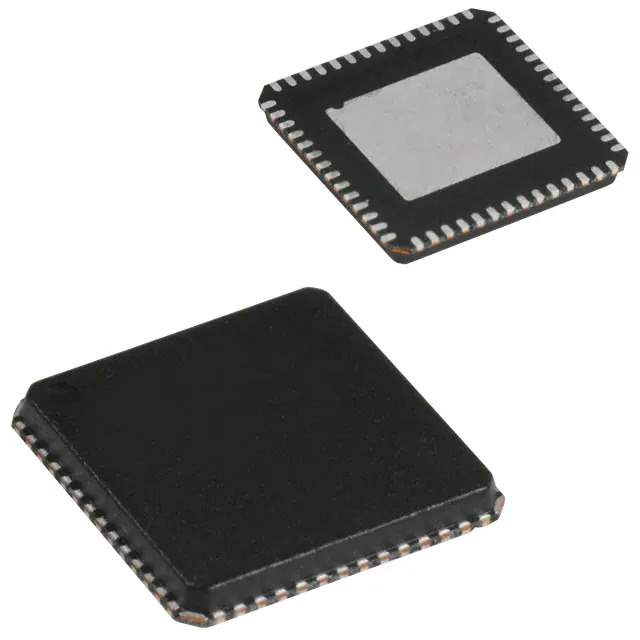

CY8CTST120-56LFXI Real Image
Same model may have multiple batches, images only for reference.

CY8CTST120-56LFXI

Part No CY8CTST120-56LFXI
Manufacturer Infineon Technologies
Catalog Embedded - Microcontrollers - Application Specific
Description IC TRUETOUCH CAPSENSE 56VQFN
Datasheet
CY8CTST120-56LFXI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Application Specific Microcontrollers
Mfr Infineon Technologies
Series TrueTouch™
Package Tray
Product Status Obsolete
Programmable Not Verified
Applications Touchscreen Controller
Core Processor M8C
Program Memory Type FLASH (16kB)
Controller Series CY8CT
RAM Size 1K x 8
Interface I2C, SPI, UART/USART, USB
Voltage - Supply 3V ~ 5.25V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 56-VFQFN Exposed Pad
Supplier Device Package 56-QFN (8x8)
Base Product Number CY8CTST120
Standard Package 260 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 583210-CY8CTST120-56LFXI
Ultra Librarian 3D Model Ultra Librarian CY8CTST120-56LFXI CAD Model

Description

The CY8CTST120-56LFXI is an integrated circuit from Infineon Technologies.

  • Manufacturer: Infineon Technologies
  • Series: TrueTouch™
  • Core Processor: M8C
  • Package Type: 56-VFQFN Exposed Pad
  • Mounting: Surface mountable
  • Application: Touchscreen controller
  • Interfaces: I2C, SPI, UART/USART, USB
  • Program Memory Type: FLASH
  • Program Memory: 16kB
  • RAM Size: 1K x 8
  • Voltage Supply: 3V to 5.25V
  • Operating Temperature: -40°C to 85°C
  • Standard Package: 260 pcs
