Same model may have multiple batches, images only for reference.

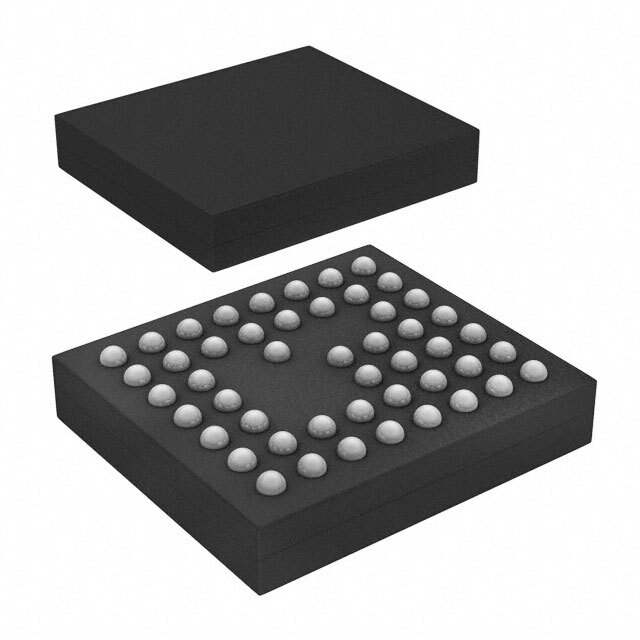

CYW20704UA1KFFB1GT Real Image
Same model may have multiple batches, images only for reference.

CYW20704UA1KFFB1GT

Part No CYW20704UA1KFFB1GT
Manufacturer Infineon Technologies
Catalog RF Transceiver ICs
Description IC RF TXRX+MCU BLUETOOTH 49VFBGA / IC RF TxRx + MCU Bluetooth Bluetooth v4.1 2.4GHz 49-VFBGA, FCBGA
Datasheet
CYW20704UA1KFFB1GT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver ICs
Mfr Infineon Technologies
Package Tape & Reel
Product Status Active
Programmable Not Verified
Type TxRx + MCU
RF Family/Standard Bluetooth
Protocol Bluetooth v4.1
Frequency 2.4GHz
Data Rate (Max) 2Mbps
Power - Output 12dBm
Sensitivity -95.5dBm
Serial Interfaces SPI, UART
GPIO 8
Voltage - Supply 3.3V
Temperature Range - Operating -30°C ~ 85°C
Mounting Type Surface Mount
Package / Case 49-VFBGA, FCBGA
Supplier Device Package 49-FCBGA (4.5x4)
Base Product Number CYW20704
Standard Package 2,500 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.39.0001
Win Source Part Number 845644-CYW20704UA1KFFB1GT
Ultra Librarian 3D Model Ultra Librarian CYW20704UA1KFFB1GT CAD Model

Description

The Infineon Technologies 845644-CYW20704UA1KFFB1GT is a RF transceiver IC designed for wireless communication applications from Infineon Technologies.

  • Frequency: 2.4GHz
  • Protocol: Bluetooth v4.1
  • Data Rate: Up to 2Mbps
  • Power Output: 12dBm
  • Mounting Type: Surface Mount
  • Serial Interfaces: SPI and UART
  • GPIO Pins: 8
  • Operating Temperature: -30°C to 85°C
  • Product Status: Active
