DDB6U84N16RRBOSA1

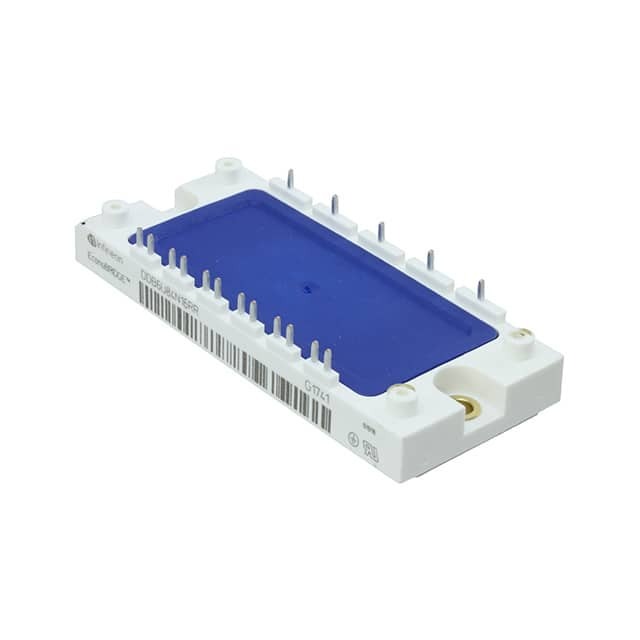

Same model may have multiple batches, images only for reference.

DDB6U84N16RRBOSA1

Part No DDB6U84N16RRBOSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description IGBT MOD 1200V 50A 350W
Datasheet
DDB6U84N16RRBOSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - IGBTs - IGBT Modules
Mfr Infineon Technologies
Package Bulk
Product Status Discontinued
IGBT Type NPT
Configuration Single Chopper
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 50 A
Power - Max 350 W
Vce(on) (Max) @ Vge, Ic 3.2V @ 20V, 50A
Current - Collector Cutoff (Max) 1 mA
Input Capacitance (Cies) @ Vce 3.3 nF @ 25 V
Input Standard
NTC Thermistor No
Temperature Range - Operating 150°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package Module
Base Product Number DDB6U84
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 846809-DDB6U84N16RRBOSA1
Ultra Librarian 3D Model Ultra Librarian DDB6U84N16RRBOSA1 CAD Model

Description

The 846809-DDB6U84N16RRBOSA1 is an IGBT module designed for single chopper configurations.

  • Maximum Power Rating: 350W
  • Voltage Breakdown: 1200V
  • Maximum Collector Current: 50A
  • Vce(on): 3.2V @ 20V and 50A
  • IGBT Type: NPT IGBT
  • Mounting: chassis mountable
  • Package Type: module
  • Supplier Device Package: module
  • Temperature Range: 150°C
