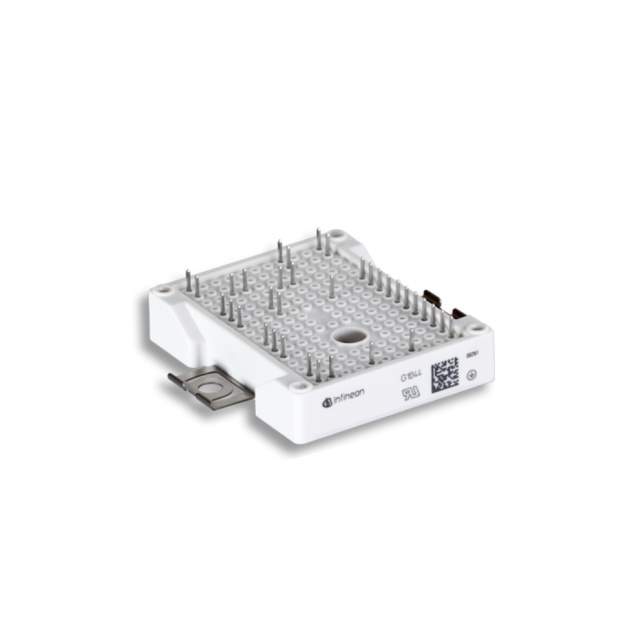

F3L100R12W2H3B11BPSA1 Real Image
Same model may have multiple batches, images only for reference.

F3L100R12W2H3B11BPSA1

Part No F3L100R12W2H3B11BPSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description IGBT MOD 1200V 100A 375W
Datasheet
F3L100R12W2H3B11BPSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 51 Weeks
Features IGBT Module - Three Phase Inverter 1200 V 100 A 375 W Chassis Mount Module
Manufacturer Infineon Technologies
Package Bulk
Operating Temperature Range -40°C ~ 150°C
Mounting Chassis Mount
Package Module
Case / Package Module
Family Name F3L100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number F3L100R12W2H3_B11, F3L100R12W2H3_B11-ND, SP001197100
Quantity per package 15
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 871400-F3L100R12W2H3B11BPSA1
Ultra Librarian 3D Model Ultra Librarian F3L100R12W2H3B11BPSA1 CAD Model

Description

The F3L100R12W2H3B11BPSA1 is a chassis mount module from Infineon Technologies.

  • Type: IGBT module - three phase inverter
  • Voltage: 1200 V
  • Current: 100 A
  • Power: 375 W
  • Mounting: Chassis Mount Module
  • Operating Temperature: -40°C to 150°C
  • Manufacturer: Infineon Technologies
  • Package Type: Bulk
  • Quantity per Package: 15
  • Estimated Production Lead Time: 51 weeks
