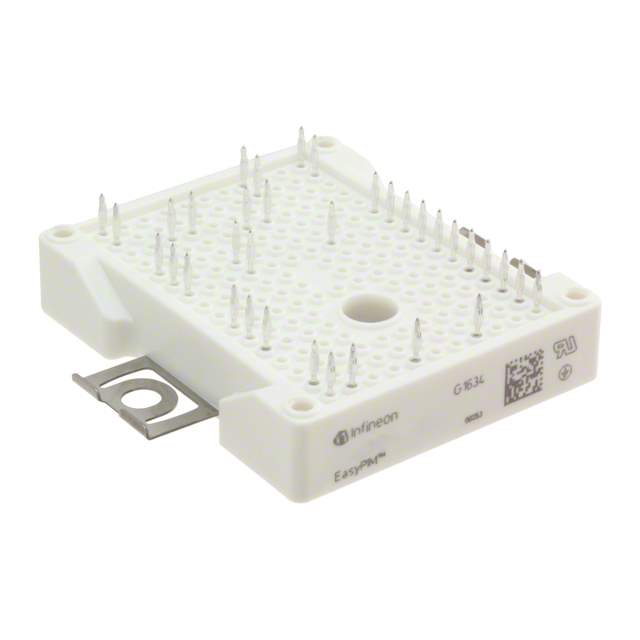

The FP50R06W2E3BOMA1 is an EasyPACK™ 2B module featuring Rapid 1 IGBTs from Infineon Technologies. This module is designed for applications requiring efficient power conversion, such as motor drives, renewable energy systems (solar inverters, wind turbines), and uninterruptible power supplies (UPS). The EasyPACK™ 2B package offers a compact and robust solution for high-power applications.

Applications

• Motor drives
• Solar inverters
• Wind turbines
• Uninterruptible power supplies (UPS)
• General-purpose inverters

Features

• EasyPACK™ 2B package
• Rapid 1 IGBT technology
• Trenchstop™ technology for low VCE(sat)
• Integrated temperature sensor
• PressFIT contacts for easy assembly
• RoHS compliant

Benefits

• Provides efficient power conversion with low switching losses.
• Compact EasyPACK™ 2B package allows for high power density.
• Integrated temperature sensor enables accurate thermal monitoring and protection.
• PressFIT contacts simplify assembly and improve reliability.
• Suitable for a wide range of high-power applications.

Additional Details

The FP50R06W2E3BOMA1 module features a blocking voltage of 600V and a nominal current of 50A. The Rapid 1 IGBTs provide fast switching speeds and low conduction losses, improving overall system efficiency. The integrated temperature sensor allows for accurate monitoring of the module's junction temperature, enabling thermal protection and preventing over-temperature failures. The module's PressFIT contacts provide a reliable and solder-free connection to the PCB. Detailed specifications including electrical characteristics, thermal performance, and mechanical dimensions are available in the Infineon datasheet for this part number.
