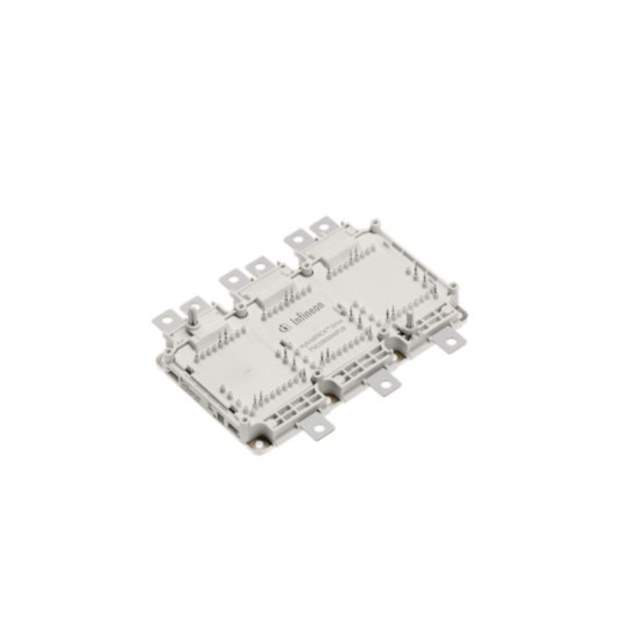

FS820R08A6P2LBBPSA1 Real Image
Same model may have multiple batches, images only for reference.

FS820R08A6P2LBBPSA1

Part No FS820R08A6P2LBBPSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description IGBT MODULE 820A HYBRID PK DRIVE
Datasheet
FS820R08A6P2LBBPSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 38 Weeks
Features IGBT Module Trench Field Stop Three Phase Inverter 820 A Chassis Mount Module
Manufacturer Infineon Technologies
Package Tray
Operating Temperature Range 175°C (TJ)
Mounting Chassis Mount
Package Module
Case / Package Module
Family Name FS820R08
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Quantity per package 6
Popularity High
Supply and Demand Status Balance
Win Source Part Number 919359-FS820R08A6P2LBBPSA1
Ultra Librarian 3D Model Ultra Librarian FS820R08A6P2LBBPSA1 CAD Model

Description

The Infineon Technologies IGBT Module Trench Field Stop Three Phase Inverter 820 A Chassis Mount Module is a powerful and efficient electronic component that is perfect for use in a variety of applications. With an operating temperature range of 175°C (TJ), this IGBT can withstand extreme temperatures and is ideal for use in harsh environments.

  • Operating Temperature: 175°C (TJ)
  • Package: Module
  • Mounting Type: Chassis
  • ECCN: EAR99
  • Supply and Demand Status: Balanced
  • Package Quantity: 6
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH Unaffected
  • HTSUS Code: 8541.29.0095
