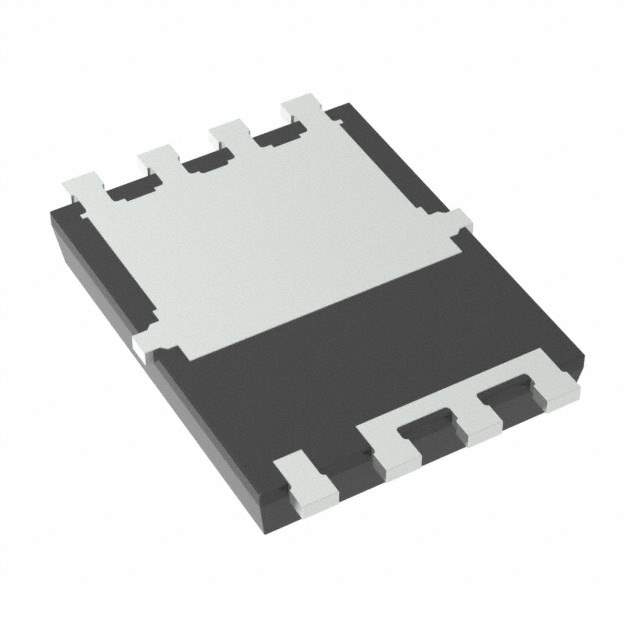

The Infineon Technologies OptiMOS™ 1278376-IAUC120N04S6L008ATMA1 is a discrete semiconductor product with a tape & reel package.

• Manufacturer: Infineon Technologies
• Series: OptiMOS™
• Application: Automotive, AEC-Q101
• MOSFET Type: N-Channel
• Drain to Source Voltage: 40 V
• Continuous Drain Current: 120A (Tc)
• Rds On (Max) @ Id, Vgs: 0.8mOhm @ 60A, 10V
• Vgs(th) (Max) @ Id: 2V @ 90µA
• Power Dissipation (Max): 150W (Tc)
• Mounting Type: SMD (SMT)
• Gate Charge (Qg) (Max) @ Vgs: 140 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds: 7910 pF @ 25 V
• Vgs (Max): ±16V
• Temperature Range: -55°C ~ 175°C (TJ)
• ECCN: EAR99 compliant
