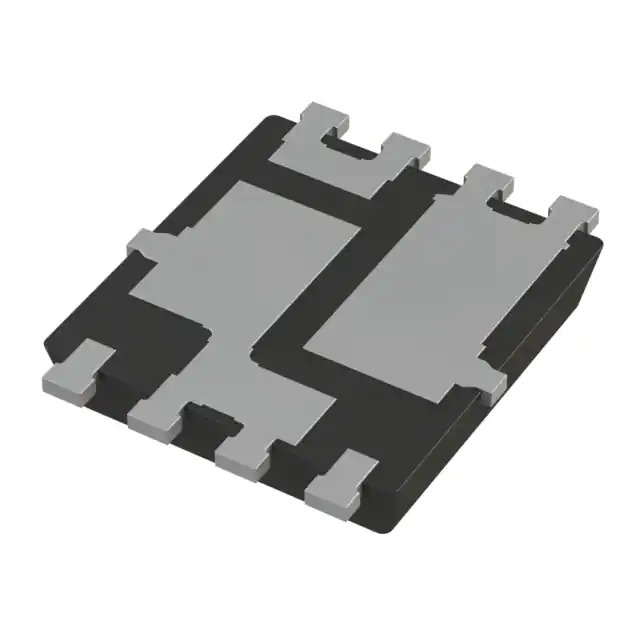

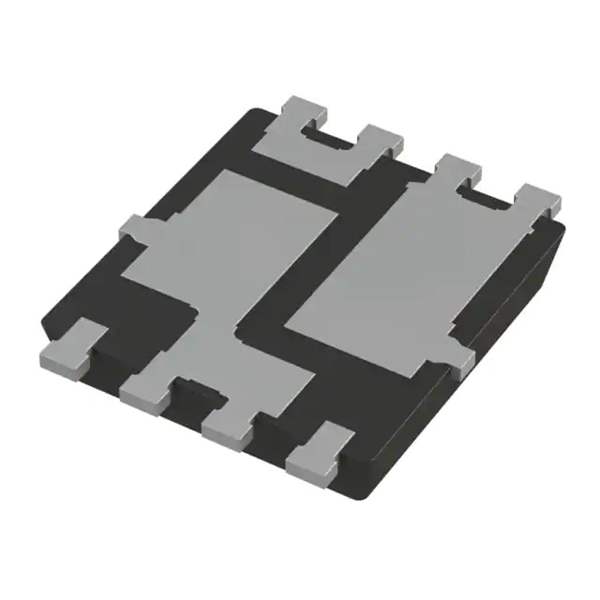

IAUC45N04S6N070HATMA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

IAUC45N04S6N070HATMA1

Part No IAUC45N04S6N070HATMA1
Manufacturer Infineon Technologies
Catalog FETs - Arrays
Description IAUC45N04S6N070HATMA1 / Mosfet Array 40V 45A (Tj) 41W (Tc) Surface Mount PG-TDSON-8-57
Datasheet
IAUC45N04S6N070HATMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - FET, MOSFET Arrays
Mfr Infineon Technologies
Series Automotive, AEC-Q101, OptiMOS™
Package Tape & Reel
Product Status Active
Technology MOSFET (Metal Oxide)
Configuration 2 N-Channel (Half Bridge)
FET Feature -
Drain to Source Voltage (Vdss) 40V
Current - Continuous Drain (Id) @ 25°C 45A (Tj)
Rds On (Max) @ Id, Vgs 7mOhm @ 22A, 10V
Vgs(th) (Max) @ Id 3V @ 9µA
Gate Charge (Qg) (Max) @ Vgs 12nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds 701pF @ 25V
Power - Max 41W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Package / Case 8-PowerVDFN
Supplier Device Package PG-TDSON-8-57
Base Product Number IAUC45
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1353083-IAUC45N04S6N070HATMA1
Ultra Librarian 3D Model Ultra Librarian IAUC45N04S6N070HATMA1 CAD Model

Description

The IAUC45N04S6N070HATMA1 is a MOSFET Array from Infineon Technologies.

  • Manufacturer: Infineon Technologies
  • Series: Automotive, AEC-Q101, OptiMOS™
  • Drain to Source Voltage (Vdss): 40V
  • Continuous Drain Current (Id): 45A
  • On-Resistance (Rds On): 7mOhm @ 22A and 10V Gate-Source Voltage
  • Package: 8-PowerVDFN
  • Mounting Type: Surface Mount
  • Temperature Range: -55°C to 175°C
