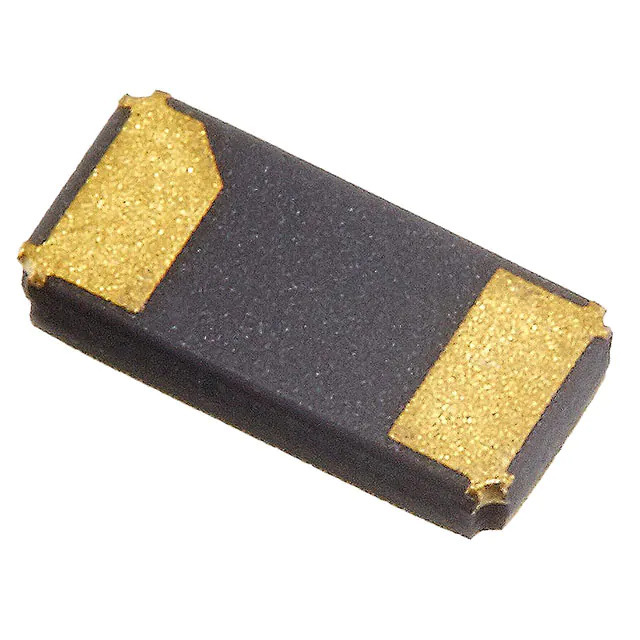

RT3215-32.768-9-TR Raltron Electronics Corporation
Same model may have multiple batches, images only for reference.

RT3215-32.768-9-TR

Part No RT3215-32.768-9-TR
Manufacturer Raltron Electronics Corporation
Catalog Oscillators
Description CRYSTAL 32.7680KHZ 9PF SMD / 32.768 kHz ±20ppm Crystal 9pF 70 kOhms 2-SMD, No Lead
Datasheet
RT3215-32.768-9-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Raltron Electronics
Series RT3215
Package Tape & Reel
Product Status Active
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Stability -
Frequency Tolerance ±20ppm
Load Capacitance 9pF
ESR (Equivalent Series Resistance) 70 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max) 0.035" (0.90mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0010
Win Source Part Number 1356531-RT3215-32.768-9-TR
Ultra Librarian 3D Model Ultra Librarian RT3215-32.768-9-TR CAD Model

Description

The RT3215-32.768-9-TR is a 32.768 kHz crystal (tuning fork) manufactured by Raltron Electronics.

  • Frequency: 32.768 kHz
  • Operating Temperature: -40°C ~ 85°C
  • ESR (Equivalent Series Resistance): 70 kOhms
  • Series: RT3215
  • Package / Case: 2-SMD, No Lead
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel (TR)
  • Size / Dimension: 0.126" L x 0.059" W (3.20mm x 1.50mm)
  • Height - Seated (Max): 0.035" (0.90mm)
  • HTSUS: 8541.60.0010
  • REACH Status: Unaffected
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 9pF
  • Operating Mode: Fundamental
